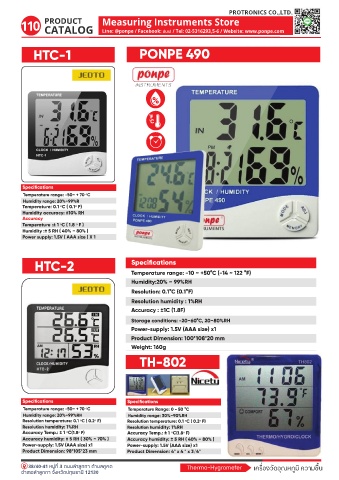

Page 113 - PONPE INSTRUMENTS

PROTRONICS CO.,LTD.

110 Measuring Instruments Store
Line: @ponpe / Facebook: »¹à» / Tel: 02-5316293,5-6 / Website: www.ponpe.com

HTC-1 PONPE 490

Specifications
Temperature range: -50~ + 70 ºC
Humidity range: 20%~99%R
Temperature: 0.1 ºC ( 0.1º F)
Humidity accuracy: ±10% RH
Accuracy
Temperature :± 1 ºC ( 1.8 º F )
Humidity :± 5 RH ( 40% ~ 80% )
Power supply: 1.5V ( AAA size ) X 1

HTC-2 Specifications
Temperature range: -10 ~ +50°C (-14 ~ 122 °F)
Humidity:20% ~ 99%RH
Resolution: 0.1°C (0.1°F)

Resolution humidity : 1%RH
Accuracy : ±1C (1.8F)

Storage conditions: -20~60°C, 20~80%RH
Power-supply: 1.5V (AAA size) x1
Product Dimension: 100*108*20 mm
Weight: 160g
TH-802

Specifications Specifications
Temperature range: -50~ + 70 ºC Temperature Range: 0 - 50 °C
Humidity range: 20%~99%RH Humidity range: 30%~90%RH
Resolution temperature: 0.1 ºC ( 0.2º F) Resolution temperature: 0.1 ºC ( 0.2º F)
Resolution humidity: 1%RH Resolution humidity: 1%RH
Accuracy Temp.: ± 1 ºC(1.8º F) Accuracy Temp.: ± 1 ºC(1.8º F)
Accuracy humidity: ± 5 RH ( 30% ~ 70% ) Accuracy humidity: ± 5 RH ( 40% ~ 80% )
Power-supply: 1.5V (AAA size) x1 Power-supply: 1.5V (AAA size) x1
Product Dimension: 98*105*23 mm Product Dimension: 4" x 4 " x 3/4"

38/40-41 ËÁÙ‹·Õè 3 ¶¹¹ÅÓÅÙ¡¡Ò µÓºÅ¤Ù¤µ เครื่องวัดอุณหภูมิ ความชื้น
ÍÓàÀÍÅÓÅÙ¡¡Ò ¨Ñ§ËÇÑ´»·ØÁ¸Ò¹Õ 12130
