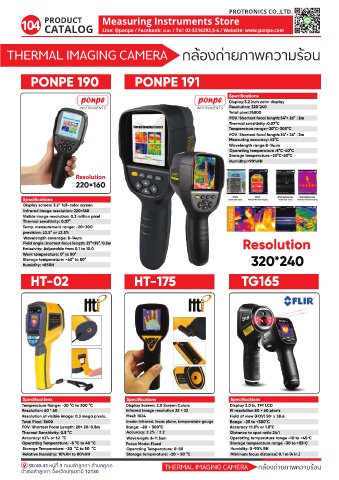

THERMAL IMAGING CAMERA กล�องถ�ายภาพความร�อน

PONPE 190 PONPE 191

Specifications
Display:3.2 inch color display
Resolution: 320*240
Total pixel:76800
FOV/Shortest focal length:34°× 26° /2m
Thermal sensitivity :0.07°C
Temperature range:-20°C-300°C
FOV/Shortest focal length:34°× 26° /2m
Measuring accuracy: ±2°C
Wavelength range:8-14 m
Operating temperature :5°C-40°C
Storage temperature:-20°C-50°C
Humidity:<90%RH

Specifications
Display screen: 3.2'' full-color screen
Infrared image resolution: 220×160
Visible image resolution: 0.3 million pixel
Thermal sensitivity: 0.07°
Temp. measurement range: -20~300
precision: ±2.5° or ±2.5%
Wavelength coverage: 8-14um
Field angle/shortest focus length: 27°×35°/0.5m
Emissivity: Adjustable from 0.1 to 10.0
Work temperature: 0° to 50°
Storage temperature: -40° to 80°
Humidity: <85RH
HT-02 HT-175 TG165

Specifications Specifications Specifications
Temperature Range: -20 °C to 300 °C Display Screen: 2.0 Screen Colors Display 2.0 in. TFT LCD
Resolution: 60 * 60 Infrared image resolution 32 × 32 IR resolution 80 × 60 pixels
Resolution of visible image: 0.3 mega pixels. Pixel: 1024 Field of view (FOV) 50º x 38.6º
Total Pixel: 3600 mode: infrared, focus plane, temperature gauge Range –25 to +380°C
FOV/Shortest Focal Length: 20× 20/0.5m Range: -20 ~ 300°C Accuracy ±1.5% or 1.5°C
Thermal Sensitivity: 0.5 °C Accuracy: ± 2% / ± 2 Distance to spot ratio 24:1
Accuracy: ±2% or ±2 °C Wavelength: 8-11.5um Operating temperature range -10 to +45ºC
Operating Temperature: -5 °C to 40 °C Focus Mode: Fixed Storage temperature range -30 to +55ºC
Storage Temperature: -20 °C to 50 °C Operating Temperature: 0-50 Humidity: 0-90% RH
Relative Humidity: 10%RH to 80%RH Storage temperature: -20 ~ 50 °C Minimum focus distance) 0.1 m (4 in.)
