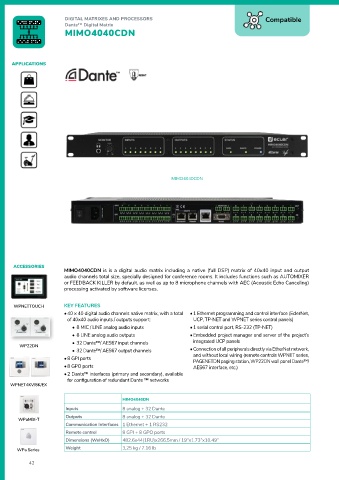

Page 42 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

DIGITAL MATRIXES AND PROCESSORS DIGITAL MATRIXES AND PROCESSORS
Dante™ Digital Matrix
MIMO4040CDN MIMO4040CDN

APPLICATIONS APPLICATIONS

AEC conceptual scheme

MIMO4040CDN

ACCESSORIES
MIMO4040CDN is is a digital audio matrix including a native (full DSP) matrix of 40x40 input and output
audio channels total size, specially designed for conference rooms. It includes functions such as AUTOMIXER
or FEEDBACK KILLER by default, as well as up to 8 microphone channels with AEC (Acoustic Echo Canceling)
processing activated by software licenses.

WPNETTOUCH KEY FEATURES •
• 40 x 40 digital audio channels native matrix, with a total • 1 Ethernet programming and control interface (EclerNet,
of 40x40 audio inputs / outputs support: UCP, TP-NET and WPNET series control panels)
• 8 MIC / LINE analog audio inputs • 1 serial control port, RS-232 (TP-NET)
• 8 LINE analog audio outputs • Embedded project manager and server of the project’s
• 32 Dante™/ AES67 input channels integrated UCP panels
WP22DN
• 32 Dante™/ AES67 output channels • Connection of all peripherals directly via EtherNet network,
• 8 GPI ports and without local wiring (remote controls WPNET series,
PAGENETDN paging station, WP22DN wall panel Dante™/
• 8 GPO ports AES67 interface, etc.)
• 2 Dante™ interfaces (primary and secondary), available
for configuration of redundant Dante ™ networks
WPNET4KV/8K/EX

MIMO4040DN
Inputs 8 analog + 32 Dante
Outputs 8 analog + 32 Dante
WPaMIX-T
Communication Interfaces 1 Ethernet + 1 RS232
Remote control 8 GPI + 8 GPO ports
Dimensions (WxHxD) 482,6x44(1RU)x266,5mm / 19”x1.73”x10.49”
WPa Series Weight 3,25 kg / 7.16 lb EclerNet Manager MIMO4040CDN Features
