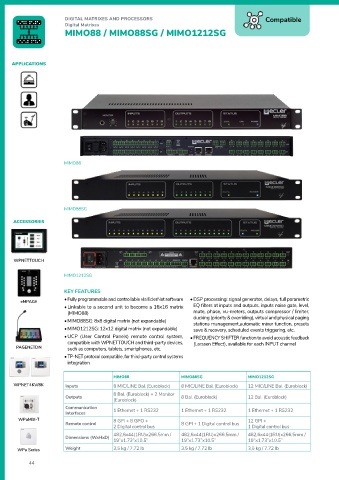

Page 44 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

DIGITAL MATRIXES AND PROCESSORS DIGITAL MATRIXES AND PROCESSORS
Digital Matrixes MIMO Firmware
MIMO88 / MIMO88SG / MIMO1212SG MIMO CONFERENCE

APPLICATIONS APPLICATIONS

MIMO88

MIMO88SG

ACCESSORIES

WPNETTOUCH

MIMO1212SG

KEY FEATURES •
eMPAGE • Fully programmable and controllable via EclerNet software • DSP processing: signal generator, delays, full parametric
• Linkable to a second unit to become a 16x16 matrix EQ filters at inputs and outputs, inputs noise gate, level,
(MIMO88) mute, phase, vu-meters, outputs compressor / limiter,
• MIMO88SG: 8x8 digital matrix (not expandable) ducking (priority & overriding), virtual and physical paging
stations management,automatic mixer function, presets
• MIMO1212SG: 12x12 digital matrix (not expandable) save & recovery, scheduled events triggering, etc.
• UCP (User Control Panels) remote control system, • FREQUENCY SHIFTER function to avoid acoustic feedback MIMO CONFERENCE
compatible with WPNETTOUCH and third-party devices, (Larssen Effect), available for each INPUT channel
PAGENETDN such as computers, tablets, smartphones, etc.
• TP-NET protocol compatible, for third-party control systems MIMO CONFERENCE has been especially designed for those applications that involve conferencing,
integration microphone automatic mix processing and feedback loops (Larsen effect) cancellation. MIMO Conference
shares the same hardware of the standard MIMO version, including a specific firmware upgrade with tailored
MIMO88 MIMO88SG MIMO1212SG DSP resources for automix and conference purposes. Included in EclerNet Manager pack. Compatible with
WPNET4KV/8K Inputs 8 MIC/LINE Bal. (Euroblock) 8 MIC/LINE Bal. (Euroblock) 12 MIC/LINE Bal. (Euroblock) MIMO88, MIMO88SG and MIMO1212SG.
8 Bal. (Euroblock) + 2 Monitor
Outputs 8 Bal. (Euroblock) 12 Bal. (Euroblock) KEY FEATURES •
(Euroblock)
Communication 1 Ethernet + 1 RS232 1 Ethernet + 1 RS232 1 Ethernet + 1 RS232 MIMO CONFERENCE: • FEEDBACK KILLER (2 modules)
Interfaces • AUTOMIXER processing module: • 2 automatic notch filter banks
WPaMIX-T 8 GPI + 8 GPO + 12 GPI + • 2 microphone managing modes: • 8 notch filters included in each bank
Remote control 8 GPI + 1 Digital control bus
2 Digital control bus 1 Digital control bus • NOMA (“Number of Open Microphones Attenuated”) • Fixed / dynamic filters free configuration
482,6x44(1RU)x266,5mm / 482,6x44(1RU)x266,5mm / 482,6x44(1RU)x266,5mm / • EXCLUSIVE • Filter WIDTH, RECYCLE TIMER, LOCK, RESET and
Dimensions (WxHxD)
19”x1.73”x10.5” 19”x1.73”x10.5” 19”x1.73”x10.5” • Full set of working parameters: MAX. NOMA, LAST BYPASS parameters
WPa Series Weight 3,5 kg / 7.72 lb 3,5 kg / 7.72 lb 3,5 kg / 7.72 lb ON, PRIORITY, THRESHOLD DEPTH, etc. • 4 working mode presets

44 45
