AMPLIFIERS AMPLIFIERS
High Impedance Amplifiers Flexi-power Amplifier
HSA Series HZA4-120F

APPLICATIONS APPLICATIONS

HSA300

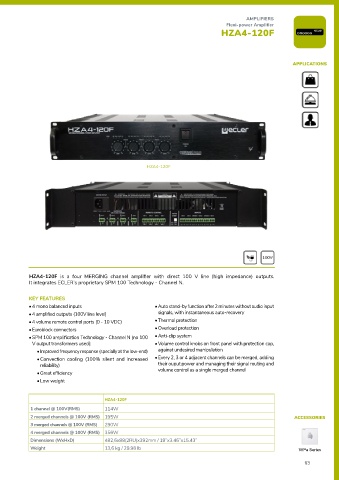

HZA4-120F
HSA2-400ES

HSA300:

HSA300 is a single channel amplifier with direct 100 V line (high impedance) output. HZA4-120F is a four MERGING channel amplifier with direct 100 V line (high impedance) outputs.
HSA2-400ES is a stereo amplifier with low and high impedance powered outputs. It integrates ECLER’s proprietary SPM 100 Technology - Channel N.

KEY FEATURES KEY FEATURES •
HSA300: HSA2-400ES: • 4 mono balanced inputs • Auto stand-by function after 2 minutes without audio input
• 1 mono balanced input • 2 mono balanced inputs (XLR and Euroblock terminals) • 4 amplified outputs (100V line level) signals, with instantaneous auto-recovery
• 1 output (100V line level) • 2 x 400 W RMS output (4Ω and 70/ 100V line level) • 4 volume remote control ports (0 - 10 VDC) • Thermal protection
• Euroblock connectors • Euroblock output connectors • Euroblock connectors • Overload protection
• SPM 100 amplification Technology - Channel N (no 100V • 2 REMOTE volume ports (0-10VDC), compatible with • SPM 100 amplification Technology - Channel N (no 100 • Anti-clip system
output transformers used): WPa series wall panels V output transformers used): • Volume control knobs on front panel with protection cap,
©
• Improved frequency response (specially at the low-end) • Energy Star Certfication • Improved frequency response (specially at the low-end) against undesired manipulation
• Great efficiency • High efficiency, auto stand-by function and convection • Convection cooling (100% silent and increased • Every 2, 3 or 4 adjacent channels can be merged, adding
• Low weight cooling (fanless, 100% silent) reliability) their ouput power and managing their signal routing and
volume control as a single merged channel
• Great efficiency
• Low weight
•
HSA300 HSA2-400ES
HZA4-120F
1 channel @ 302W (100V) 450W
70/100V(RMS) 1 channel @ 100V(RMS) 114W
ACCESSORIES 1 channel @ 4Ω (RMS) - 390W 2 merged channels @ 100V (RMS) 195W ACCESSORIES
1 channel @ 8Ω (RMS) - 280W 3 merged channels @ 100V (RMS) 290W
Dimensions (WxHxD) 482,6x88(2RU)x285mm / 19”x3.46”x11.22” 482,6x88(2RU)x373mm / 19”x3.46”x14.68” 4 merged channels @ 100V (RMS) 356W
HxWxD: 88 (2RU)x482,6x285mm / 8,4 kg / Dimensions (WxHxD) 482,6x88(2RU)x392mm / 19”x3.46”x15.43”
Weight 16,4 kg / 36.15 lb
WPa Series 18.51 lb Weight 13,6 kg / 29.98 lb WPa Series
