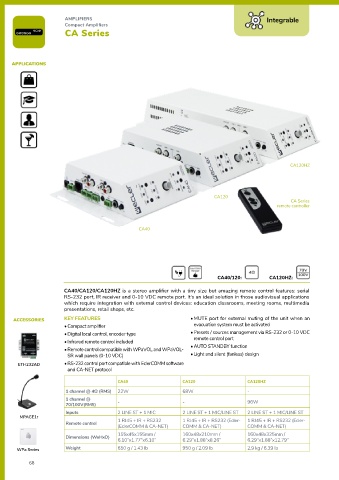

AMPLIFIERS LOUDSPEAKERS
Compact Amplifiers In-Ceiling/In-Wall Loudspeakers
CA Series eIC Series

APPLICATIONS APPLICATIONS

eIC51FM eIC51FM Fast mount system

CA120HZ
eIC52MS

CA120
CA Series elC52 elC5154
remote controller

CA40

CA40/120: CA120HZ:
elC52MS elC52MS
CA40/CA120/CA120HZ is a stereo amplifier with a tiny size but amazing remote control features: serial
RS-232 port, IR receiver and 0-10 VDC remote port. It's an ideal solution in those audiovisual applications
which require integration with external control devices: education classrooms, meeting rooms, multimedia
presentations, retail shops, etc. eIC5154:
ACCESSORIES KEY FEATURES • MUTE port for external muting of the unit when an
• Compact amplifier evacuation system must be activated eIC51FM / eIC52 / eIC5154 / eIC52MS is a cost-effective in-ceiling installation loudspeaker with a great sound
• Digital local control, encoder type • Presets / sources management via RS-232 or 0-10 VDC performance.
• Infrared remote control included remote control port KEY FEATURES • Suitable for installations exposed to extreme humidity and/
• Remote control compatible with WPaVOL and WPaVOL- • AUTO STANDBY function • Built-in audio transformer for 70/100 V use or temperature (eIC52MS)
SR wall panels (0-10 VDC) • Light and silent (fanless) design • EN54-24 Certified (eIC5154) • EASE Win file available
ETH232AD • RS-232 control port compatible with EclerCOMM software •
and CA-NET protocol
eIC51FM eIC52 eIC5154 eIC52MS
CA40 CA120 CA120HZ
RMS power /
1 channel @ 4Ω (RMS) 22W 68W - Program power (8Ω) 6 W 20W / 40W - 20 / 35W
1 channel @
70/100V(RMS) - - 96W Woofer / tweeter 4,5” / - 5,25” / 0,75” 5” / - 5” / 1”
Inputs 2 LINE ST + 1 MIC 2 LINE ST + 1 MIC/LINE ST 2 LINE ST + 1 MIC/LINE ST 3/6 W @ 100V | 0,38/0,75/1,5/3/6 W
MPAGE1r Power selector 1,5/3W @ 70V 3/6 W @ 100V @ 100V -
Remote control 1 RJ45 + IR + RS232 1 RJ45 + IR + RS232 (Ecler- 1 RJ45 + IR + RS232 (Ecler-
(EclerCOMM & CA-NET) COMM & CA-NET) COMM & CA-NET) SPL 1W/1m 91 dB 86 dB 92 dB 89 dB
155x45x155mm / 160x48x210mm / 160x48x325mm / Dimensions (ø inter- 145x160x54mm / 164x202x65mm / 158x180x147mm / 120x165x60mm /
Dimensions (WxHxD)
6.10”x1.77”x6.10” 6.29”x1.88”x8.26” 6.29”x1.88”x12.79” nal x ø external x D) 5.7"x6.3"x2.1" 6.45”x7.95”x2.56” 6.22”x7.08”x5.78” 4.72”x6.49”x2.36”
WPa Series Weight 650 g / 1.43 lb 950 g / 2.09 lb 2,9 kg / 6.39 lb Weight 0,5 kg. / 1.1 lb 1,0 kg / 2.20 lb 1,2 kg / 2.64 lb 0,6 kg / 1.32 lb
