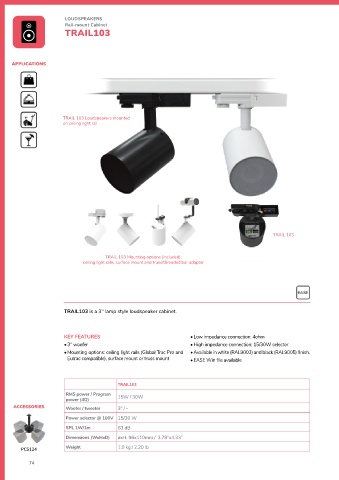

Page 74 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

LOUDSPEAKERS LOUDSPEAKERS
Rail-mount Cabinet Concealable Subwoofer Cabinet
TRAIL103 TRAILSB6T

APPLICATIONS APPLICATIONS

TRAIL 103 Loudspeakers mounted
on ceiling light rail

TRAILSB6T front TRAILSB6T rear TRAILSB6T bottom

TRAIL 103

TRAILSB6T with installation accessories (included)
TRAIL 103 Mounting options (included):
ceiling light rails, surface mount and truss/threaded bar adapter

TRAILSB6T is a wooden subwoofer reinforcement cabinet with a very compact format.
TRAIL103 is a 3" lamp style loudspeaker cabinet. It has been specifically designed to fulfil permanent installation requirements, where low visual impact and
integration with decoration are a must: concealed in false ceilings or partition walls, on walls' surface, etc.
Installation accessories included.
KEY FEATURES • Low impedance connection: 4ohm KEY FEATURES •
• 3" woofer • High impedance connection: 15/30W selector • Wooden subwoofer reinforcement for TRAIL103-type • Coupling pipe for false ceiling included
• Mounting options: ceiling light rails (Global Trac Pro and • Available in white (RAL9003) and black (RAL9005) finish. cabinets, in-ceiling loudspeakers or small surface-mount • Installation accessories included
Eutrac compatible), surface mount or truss mount • EASE Win file available cabinets • Available in black finish
• Concealed in false ceilings or partition walls, on walls'
surface, etc

TRAIL103 TRAILSB6T
RMS power / Program 15W / 30W RMS power / Program 60W / 120W
power (4Ω) power (8Ω)
ACCESSORIES Woofer / tweeter 3” / - Woofer / tweeter 6” / -

Power selector @ 100V 15/30 W Power selector @ 100V 7,5/15/30/60 W
SPL 1W/1m 83 dB SPL 1W/1m 86 dB
Dimensions (WxHxD) øxH: 96x110mm / 3.78”x4.33” Dimensions (WxHxD) 200x200x320mm / 7.87”x7.87”x12.60”

PCS124 Weight 1,0 kg / 2.20 lb Weight 6,3 kg / 13.89 lb

74 75
