LOUDSPEAKERS LOUDSPEAKERS
In-Ceiling/In-Wall Loudspeakers Painting Loudspeakers
IC6CLASS Series

APPLICATIONS

IC6CLASS-TR IC CLASS
Series grid PKIC6 PKIC8

IC6CLASS54X

IC6CLASS-54X
Ceramic fuse holder
IC6CLASS-54X Back can

IC6CLASS54X:

IC6CLASS-TR integrates a very careful and efficient selection of components, together with a mechanical AVICSG AVICRG6/8
design that provide a high quality audio ("Hi-Fidelity" profile sound) and a very fast installation process, just
using a basic set of tools.
IC6CLASS54X is a kit containing 2 x IC6CLASS-54 (EN54-24 In-ceiling /In-wall High-end Loudspeaker) +
IC-TB8 (2 Tile bridges for IC8 & IC6CLASS series).
IC6CLASS-54 is a 2-way loudspeaker features a design which conforms to EN54-24 standard (Fire detection
and fire alarm systems, Voice alarms - Loudspeakers)

KEY FEATURES • 1" Silk dome (ACCW) tweeter
IC6CLASS-TR: • Aluminium front grill (RAL9003)
• High-end 2-way loudspeaker • Fast installation procedure using a basic set of tools Paintable rust-proof grids (RAL standard)
• 16 Ω impedance, allowing for multiple units connected in
parallel to a standard audio amplifier IC6CLASS54X:
• High impedance built-in transformer, allowing for multiple • Fire rated back can
units connected in parallel to a 70V / 100V line audio • Ceramic connection terminals
amplifier (5 different power tappings available) • Thermal fuse

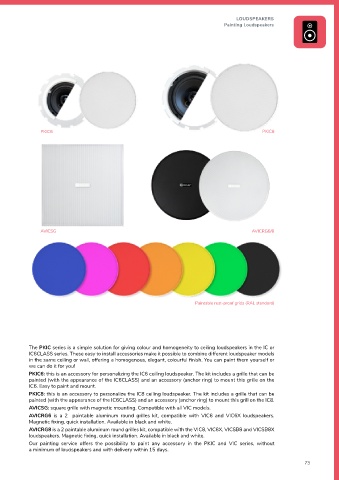

• Low/high impedance power selection accessible from The PKIC series is a simple solution for giving colour and homogeneity to ceiling loudspeakers in the IC or
the front panel, once the loudspeaker is already installed • Internal FR wiring IC6CLASS series. These easy to install accessories make it possible to combine different loudspeaker models
in the ceiling • IC-TB8 Tile bridge included in the same ceiling or wall, offering a homogenous, elegant, colourful finish. You can paint them yourself or
• 6,5" Kevlar woofer we can do it for you!
®
PKIC6: this is an accessory for personalizing the IC6 ceiling loudspeaker. The kit includes a grille that can be
painted (with the appearance of the IC6CLASS) and an accessory (anchor ring) to mount this grille on the
IC6CLASS-TR IC6CLASS54X IC6. Easy to paint and mount.
RMS power / Program 75W / 150W 75W / 150W PKIC8: this is an accessory to personalize the IC8 ceiling loudspeaker. The kit includes a grille that can be
power (16Ω) painted (with the appearance of the IC6CLASS) and an accessory (anchor ring) to mount this grill on the IC8.
Woofer / tweeter 6,5” / 1” 6,5” / 1” AVICSG: square grille with magnetic mounting. Compatible with all VIC models.
AVICRG6 is a 2 paintable aluminum round grilles kit, compatible with VIC6 and VIC6X loudspeakers.
Power selector @ 100V 3/7,5/15/20/30 W 3/7,5/15/20/30 W Magnetic fixing, quick installation. Available in black and white.
SPL 1W/1m 86 dB 86 dB AVICRG8 is a 2 paintable aluminum round grilles kit, compatible with the VIC8, VIC8X, VICSB8 and VICSB8X
ø (internal)x ø (external)xD: 224x270x95mm / ø (internal)x ø (external)xD: 224x270x95mm / loudspeakers. Magnetic fixing, quick installation. Available in black and white.
Dimensions (WxHxD)
8.81”x10.63”x3.74” 8.81”x10.63”x3.74” Our painting service offers the possibility to paint any accessory in the PKIC and VIC series, without
Weight 2,5 kg / 5.51 lb 3,1 kg / 6.83 lb a minimum of loudspeakers and with delivery within 15 days.
