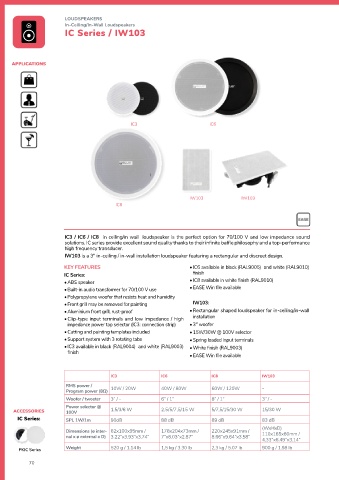

Page 70 - Midwich_ AU_Ecler_Audio_Product_Guide_2021

LOUDSPEAKERS LOUDSPEAKERS
In-Ceiling/In-Wall Loudspeakers In-Ceiling/In-Wall Loudspeakers
IC Series / IW103 VIC Series

APPLICATIONS APPLICATIONS

IC3 IC6

VIC6 VIC8 VICSB8

IW103 IW103
IC8 Tile bridge and back can
included in VIC 6X / 8X / SB8X

IC3 / IC6 / IC8 in ceiling/in wall loudspeaker is the perfect option for 70/100 V and low impedance sound Ecler's line of VIC ceiling loudspeakers features a careful selection of components in a user-friendly design
solutions. IC series provide excellent sound quality thanks to their infinite baffle philosophy and a top-performance that seeks speed and versatility of installation on any surface, while maintaining excellent sound quality.
high frequency transducer.
IW103 is a 3" in-ceiling / in-wall installation loudspeaker featuring a rectangular and discreet design. The X models include a back can and tile bridge.

KEY FEATURES • IC6 available in black (RAL9005) and white (RAL9010) KEY FEATURES ACCESSORIES
IC Series: finish VIC6/VIC6X: VICSB8/VICSB8X:
• ABS speaker • IC8 available in white finish (RAL9010) • 2-way false ceiling loudspeaker • False Ceiling Subwoofer Unit
• Built-in audio transformer for 70/100 V use • EASE Win file available • 6,5” polypropylene woofer • 8” polypropylene woofer
• Polypropylene woofer that resists heat and humidity • • 0,5” steerable tweeter • Output 80WRMS@8Ω
• Front grill may be removed for painting IW103: • Output 40WRMS@8Ω • Crossover included AVICSG
• Aluminium front grill, rust-proof • Rectangular shaped loudspeaker for in-ceiling/in-wall VIC8/VIC8X:
• Clip-type input terminals and low impedance / high installation • 2-way false ceiling loudspeaker VIC6/6X:
impedance power tap selector (IC3: connection strip) • 3" woofer
• Cutting and painting templates included • 15W/30W @ 100V selector • 8” polypropylene woofer • EASE Win file available
• Support system with 3 rotating tabs • Spring loaded input terminals • 0,5” steerable tweeter • Available in white (RAL9010) and black (RAL9005) with
• IC3 available in black (RAL9004) and white (RAL9003) • White finish (RAL9003) • Output 60WRMS@8Ω AVICRG6/8 accessory AVICCAN6L
finish
• EASE Win file available
VIC6/6X VIC8/8X VICSB8/SB8X

IC3 IC6 IC8 IW103 RMS power / Program 40W / 80W 60W / 120W 80W / 160W AVICRG6
power(8Ω)
RMS power / 10W / 20W 40W / 80W 60W / 120W - VIC8/SB8/8X/
Program power (8Ω) Woofer / tweeter 6,5” / 0,5” 8” / 0,5” 8” / - SB8X:
Woofer / tweeter 3” / - 6” / 1” 8” / 1” 3” / - Power selector @ 100V 40/20/10/5/2,5W 60/30/15/7.5/3.75W 60/30/15/7.5/3.75W
Power selector @
ACCESSORIES 100V 1,5/3/6 W 2,5/5/7,5/15 W 5/7,5/15/30 W 15/30 W SPL 1W/1m 89 dB 88 dB 87 dB
IC Series: SPL 1W/1m 90dB 88 dB 89 dB 83 dB VIC6: 232x105mm / 9.1”x4.1” VIC8: 282x115mm / VICSB8: 282x135mm / AVICCAN8L
11.1”x5.3”
11.1”x4.5”
Dimensions (ø inter- 82x100x95mm / 178x204x73mm / 220x245x91mm / (WxHxD) Dimensions (øxD) VIC6X: 232x170mm / VIC8X: 282x200mm VICSB8X: 282x200mm
9.1”x6.7”
110x165x80mm /
/11.1”x7.9”
/11.1”x7.9”
nal x ø external x D) 3.22”x3.93”x3.74” 7”x8.03”x2.87” 8.66”x9.64”x3.58”
4.33”x6.49”x3.14” VIC6: 1.8kg / 3.9 lb. VIC8: 2.3kg / 5 lb. VICSB8: 3.2kg / 7 lb.
PKIC Series Weight 520 g / 1.14 lb 1,5 kg / 3.30 lb 2,3 kg / 5.07 lb 900 g / 1.98 lb Weight VIC6X: 2.3kg / 5 lb. VIC8X: 3.1kg / 6.8 lb. VICSB8X: 3.9kg / 8.6 lb. AVICRG8
