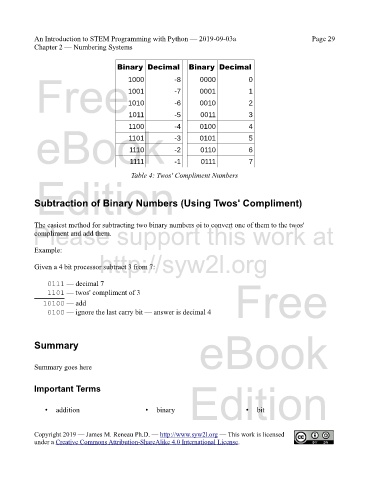

An Introduction to STEM Programming with Python — 2019-09-03a Page 29
Chapter 2 — Numbering Systems
Binary Decimal Binary Decimal
Free -8 0000 0
1000
1
1001
-7
0001
0010
1010
2
-6
1011 -5 0011 3
1100 -4 0100 4
1101 -3 0101 5
1110 -2 0110 6
eBook -1 0111 7
1111
Table 4: Twos' Compliment Numbers
Edition
Subtraction of Binary Numbers (Using Twos' Compliment)
The easiest method for subtracting two binary numbers oi to convert one of them to the twos'
Please support this work at
compliment and add them.
Example:
http://syw2l.org
Given a 4 bit processor subtract 3 from 7:
0111 — decimal 7
1101 — twos' compliment of 3
10100 — add Free
0100 — ignore the last carry bit — answer is decimal 4
eBook
Summary
Summary goes here
Edition
Important Terms
• addition • binary • bit
