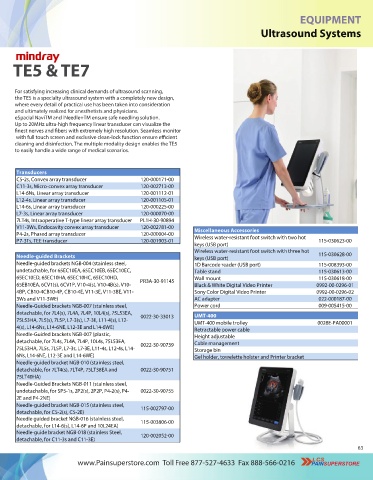

Page 63 - LCS Catalog Final

EQUIPMENT

Ultrasound Systems

TE5 & TE7

For satisfying increasing clinical demands of ultrasound scanning,
the TE5 is a specialty ultrasound system with a completely new design,
where every detail of practical use has been taken into consideration
and ultimately realized for anesthetists and physicians.
eSpacial NaviTM and iNeedle+TM ensure safe needling solution.
Up to 20MHz ultra-high frequency linear transducer can visualize the
nest nerves and bers with extremely high resolution. Seamless monitor
with full touch screen and exclusive clean-lock function ensure e cient
cleaning and disinfection. The multiple modality design enables the TE5
to easily handle a wide range of medical scenarios.

Transducers
C5-2s, Convex array transducer 120-000171-00
C11-3s, Micro-convex array transducer 120-002713-00
L14-6Ns, Linear array transducer 120-001112-01
L12-4s, Linear array transducer 120-001105-01
L14-6s, Linear array transducer 120-000225-00
L7-3s, Linear array transducer 120-000070-00
7LT4s, Intraoperative T-type linear array transducer PL1H-30-90894
V11-3Ws, Endocavity convex array transducer 120-002781-00 Miscellaneous Accessories
P4-2s, Phased array transducer 120-000004-00 Wireless water-resistant foot switch with two hot
P7-3Ts, TEE transducer 120-001903-01 115-030623-00
keys (USB port)
Wireless water-resistant foot switch with three hot
Needle-guided Brackets keys (USB port) 115-030628-00
Needle-guided brackets NGB-004 (stainless steel, 1D Barcode reader (USB port) 115-008393-00
undetachable, for 65EC10EA, 65EC10EB, 65EC10EC, Table stand 115-030613-00
65EC10ED, 65EC10HA, 65EC10HC, 65EC10HD, PR3A-30-91145 Wall mount 115-030618-00
65EB10EA, 6CV1(s), 6CV1P, V10-4(s), V10-4B(s), V10- Black & White Digital Video Printer 0992-00-0296-01
4BP, CB10-4CB10-4P, CB10-4E, V11-3E, V11-3BE, V11- Sony Color Digital Video Printer 0992-00-0296-02
3Ws and V11-3WE) AC adapter 022-000187-00
Needle-Guided brackets NGB-007 (stainless steel, Power cord 009-005415-00
detachable, for 7L4(s), 7L4A, 7L4P, 10L4(s), 75L53EA, 0022-30-33013 UMT-400
75L53HA, 7L5(s), 7L5P, L7-3(s), L7-3E, L11-4(s), L12- UMT-400 mobile trolley 0028E-PA00001
4(s), L14-6Ns, L14-6NE, L12-3E and L14-6WE) Retractable power cable
Needle-Guided brackets NGB-007 (plastic, Height adjustable
detachable, for 7L4s, 7L4A, 7L4P, 10L4s, 75L53EA, 0022-30-90739 Cable management
75L53HA, 7L5s, 7L5P, L7-3s, L7-3E, L11-4s, L12-4s, L14- Storage bin
6Ns, L14-6NE, L12-3E and L14-6WE) Gel holder, towelette holster and Printer bracket
Needle-guided bracket NGB-010 (stainless steel,
detachable, for 7LT4(s), 7LT4P, 75LT38EA and 0022-30-90751
75LT40HA)
Needle-Guided Brackets NGB-011 (stainless steel,
undetachable, for SP5-1s, 2P2(s), 2P2P, P4-2(s), P4- 0022-30-90755
2E and P4-2NE)
Needle-guided bracket NGB-015 (stainless steel, 115-002797-00
detachable, for C5-2(s), C5-2E)
Needle guided bracket NGB-016 (stainless steel, 115-003806-00
detachable, for L14-6(s), L14-6P and 10L24EA)
Needle-guide bracket NGB-018 (stainless Steel, 120-002052-00
detachable, for C11-3s and C11-3E)
63
