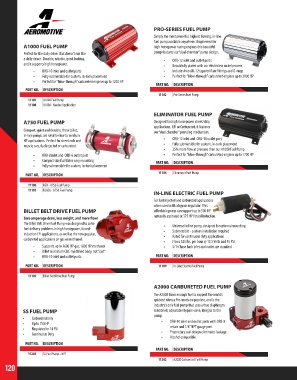

Page 120 - 2018 Master Catalog

PRO-SERIES FUEL PUMP
Simply the most powerful, highest flowing, in-line
fuel pump available anywhere. Engineered for
A1000 FUEL PUMP high horsepower racing engines this beautiful
Perfect for the daily driver that doesn’t run like pump features our “dual chamber” pump design.
a daily driver. Durable, reliable, good looking, • ORB-12 inlet and outlet ports
and it supports high horsepower. • Beautifully plated with our electroless nickel process
• ORB-10 inlet and outlet ports • Includes two AN-12 tapered flare fittings and O-rings
• Fully submersible for custom, in-tank placement • Perfect for “blow-through” carbureted engines up to 2000 HP
• Perfect for “blow-through” carbureted engines up to 1200 HP
PART NO. DESCRIPTION
PART NO. DESCRIPTION
11102 Pro-Series Fuel Pump
11101 A1000 Fuel Pump
11108 A1000 - Marine Application

ELIMINATOR FUEL PUMP
A750 FUEL PUMP Designed for high horsepower street/strip
applications. EFI or Carbureted, it features
Compact, quiet and durable, these billet, our “dual chamber” pumping mechanism.
in-line pumps are ideal for low to medium
HP applications. Perfect for street rods and • ORB-12 inlet and ORB-10 outlet port
muscle cars, fuel injected or carbureted. • Fully submersible for custom, in-tank placement
• 25% more flow at pressure than our A1000 Fuel Pump
• ORB-8 inlet and ORB-6 outlet port • Perfect for “blow-through” carbureted engines up to 1700 HP
• Compact size facilitates easy mounting PART NO. DESCRIPTION
• Fully submersible for custom, in-tank placement
11104 Eliminator Fuel Pump
PART NO. DESCRIPTION
11106 RED - A750 Fuel Pump
11103 BLACK - A750 Fuel Pump
IN-LINE ELECTRIC FUEL PUMP
For fuel injected and carbureted applications
when used with a bypass regulator. This
BILLET BELT DRIVE FUEL PUMP affordable pump can support up to 500 HP
Zero amperage draw, less weight, and more flow! naturally aspirated or 375 HP forced induction.
The Billet Belt Drive Fuel Pump was designed to solve • Universal inline pump, designed for external mounting
fuel delivery problems in high horsepower, forced- • Submersible - custom installation required
induction EFI applications, as well as the now popular, • Rated for continuous duty applications
carbureted applications on gas or methanol. • Flows 325 lbs. per hour @ 13.5 Volts and 45 PSI
• Supports up to 3600 HP gas, 1800 HP methanol • 5/16’ hose barb inlet and outlet are standard
• Billet aluminum CNC-machined body, not “cast”
• ORB-10 inlet and outlet ports PART NO. DESCRIPTION

PART NO. DESCRIPTION 11109 In-Line Electric Fuel Pump
11105 Billet Belt Drive Fuel Pump

A2000 CARBURETED FUEL PUMP
The A2000 flows enough fuel to support the world’s
quickest nitrous Pro-mods on gasoline, and is the
industry’s only fuel pump that uses a true diaphragm-
SS FUEL PUMP controlled, adjustable bypass valve, integral to the
• Carbureted only pump.
• Up to 750 HP • ORB-10 inlet and outlet ports with ORB-8
• Regulated to 14 PSI return and 1/8” NPT gauge port
• Continuous Duty • Proprietary seal design eliminates leakage
• Alcohol compatible
PART NO. DESCRIPTION
PART NO. DESCRIPTION
11203 SS Fuel Pump - NPT
11202 A2000 Carbureted Fuel Pump
120
