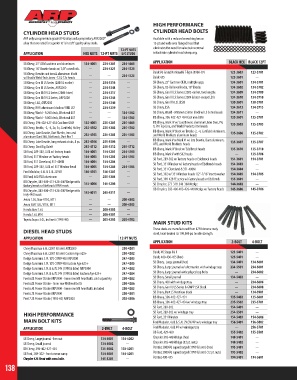

Page 138 - 2018 Master Catalog

HIGH PERFORMANCE
CYLINDER HEAD STUDS CYLINDER HEAD BOLTS
ARP only uses premium grade 8740 alloy and a proprietary ARP2000® Available with a reduced wrenching hex or
alloy that are rated far superior to “air craft” quality alloy steels. 12-pt and wide area flanged head that
eliminates the need for valve train removal
12-PT NUTS
APPLICATION HEX NUTS 12-PT NUTS U/C STUDS to facilitate cylinder head retorquing.
SB Chevy, 23° OEM cast iron and aluminum 134-4001 234-4301 234-4601 APPLICATION BLACK HEX BLACK 12PT
SB Chevy, 18° Bowtie heads w/ 3/8” raised intk. --- 234-4321 234-4721
SB Chevy, Bowtie cast iron & aluminum block --- --- 234-4723 Buick V6 Grand National & T-Type (1986-87) 123-3603 123-3701
w/ Brodix Weld-Tech Jones -12 & 12x heads Buick 455 125-3601 ---
SB Chevy, Gen III LS Series (2003 & earlier) --- 234-4316 --- SB Chevy, 23° Cast iron OEM, multiple apps 134-3601 134-3701
SB Chevy, Gen III LS Series, ARP2000 --- 234-4344 --- SB Chevy, 12-Rollover Brodix, 18° Brodix 134-3602 134-3702
SB Chevy, Gen III/IV LS Series (2004-later) --- 234-4317 --- SB Chevy, Gen III LS Series (2003-earlier, two lengths 134-3609 134-3709
SB Chevy, Gen III/IV LS Series, ARP2000 --- 234-4345 --- SB Chevy, Gen III LS Series (2004 & later-except LS9) 134-3610 134-3710
SB Chevy, LSA, ARP2000 --- 234-4346 --- SB Chevy, Gen IV 6.2L (LS9) 130-3601 130-3701
SB Chevy, RHS-aluminum block w/ RHS LS7 --- 234-4339 --- SB Chevy, LSA 134-3613 134-3713
SB Chevy, World - 9.240 deck, Warhawk LS7 --- --- 134-4702 SB Chevy, World - Motown LS iron block w/ LS Series heads 134-3611 ---
SB Chevy, World - 9.800 deck, Warhawk LS7 --- --- 134-4703 BB Chevy, 396-402-427-454 Cast iron OEM 135-3601 135-3701
BB Chevy, 396-402-427-454 Cast Iron OEM 135-4001 235-4201 235-4601 BB Chevy, Mark IV w/ Late Bowtie aluminum, Iron Dart, Pro- 135-3603 135-3703
BB Chevy, Brodix, -2, -4, 2x, 3x, Canifield, Holley 235-4102 235-4302 235-4702 1, Pro Top Line, and World Products iron heads
BB Chevy, Late Bowtie, Dart Merlin, iron and 235-4103 235-4303 235-4703 BB Chevy, Mark IV block w/ Brodix -2, -4, Canfield aluminum, 135-3606 135-3702
and World Products aluminum heads
aluminum Dart 360, Edelbrock, Dart Pro 1
BB Chevy, Late Bowtie, long exhaust studs, 8 pc. 235-4106 235-4306 --- BB Chevy, Mark V or Mark VI w/ late Bowtie, Dart aluminum, 135-3607 135-3707
AFR, and World Products heads
BB Chevy, Dart Big Chieft 235-4112 235-4312 235-4712 BB Chevy, Mark IV block w/ Edelbrock heads 135-3610 135-3710
SB Ford, 289-302, 5.0L w/ factory heads 154-4001 154-4201 254-4701 BB Chevy, Mark V with 502 heads --- 135-3706
SB Ford, 351 Windsor w/ factory heads 154-4003 154-4203 254-4703 SB Ford, 289-302 w/ factory heads or Edelbrock heads 154-3601 154-3701
SB Ford, 351 Cleveland, 351-400M 154-4004 154-4204 --- SB Ford, 351 Windsor w/ factory heads or Edelbrock heads 154-3603 ---
SB Ford, 289-302, 5.0L w/ 351 Windsor head 154-4005 154-4205 254-4705 SB Ford, 351 Cleveland & 351-400M 154-3604 ---
Ford Modular, 4.6L & 5.4L 2V/4V 156-4101 156-4301 --- SB Ford, 302 w/ 351 Windsor heads 1/2”-7/16” insert washer 154-3605 154-3705
BB Ford, 460 SVO aluminum --- 255-4304 --- SB Ford, 390-428 FE series w/ factory heads or Edelbrock 155-3601 ---
BB Chrysler, 383-400-413-426-440 Wedge with 145-4006 145-4206 ---
factory heads or Edelbrock RPM heads SB Chrysler, 273-318-340-360 Wedge 144-3602 ---
BB Chrysler, 383-400-413-426-440 Wedge with 145-4011 245-4311 --- BB Chrysler, 383-400-413-426-440 Wedge w/ factory heads 145-3606 145-3706
Indy 440 heads
Acura 1.8L, Non-VTEC, M11 --- --- 208-4302
Acura GSR 1.8L, VTEC, M11 --- --- 208-4303
Honda Civic 1.6L --- 208-4305 ---
Honda 1.6L M10 --- 208-4301 ---
Toyota Supra 3.0L, incline 6 (1993-98) --- 203-4205 203-4702
MAIN STUD KITS
DIESEL HEAD STUDS These studs are manufactured from 8740 chrome moly
steel, heat-treated to 190,000 psi tensile strength.
APPLICATION 12-PT NUTS
APPLICATION 2-BOLT 4-BOLT
Chevy Duramax 6.6L (2001 & later) ARP2000 230-4201
Chevy Duramax 6.6L (2001 & later) Custom Age 625+ 230-4202 Buick, V6 Stage I & II 123-5401 ---
Dodge Cummins 5.9L 12V (1989-98) ARP2000 247-4203 Buick, 400-430-455 (hex) 125-5401 ---
Dodge Cummins 5.9L 12V (1989-98) Custom Age 625+ 247-4205 SB Chevy, Large journal (hex) 134-5401 134-5601
Dodge Cummins 5.9L & 6.7L 24V (1998 & later) ARP2000 247-4202 SB Chevy, Large journal w/ aftermarket with windage tray 234-5501 234-5601
Dodge Cummins 5.9L & 6.7L 24V (1998 & later) Custom Age 625+ 247-4204 SB Chevy, Large journal with splayed cap bolts --- 234-5602
Ford 6.0L Power Stroke ARP2000 - Inner row M8 head bolts sold separately 250-4202 SB Chevy, Small journal 134-5402 ---
Ford 6.0L Power Stroke - Inner row M8 head bolts 250-4206 SB Chevy, 400 with windage tray --- 234-5606
Ford 6.4L Power Stroke ARP2000 - Inner row M8 head bolts included 250-4203 SB Chevy, Gen III/LS Series & GMPP LSX block --- 234-5608
Ford 6.7L Power Stroke ARP2000 250-4301 SB Chevy, Dart LS Next iron block --- 134-5901
Ford 7.3L Power Stroke (1993-03) ARP2000 202-4306 BB Chevy, 396-402-427-454 135-5402 135-5601
BB Chevy, 396-402-427-454 w/ windage tray 235-5502 235-5701
SB Ford, 289-302 154-5401 ---
---
HIGH PERFORMANCE SB Ford, 289-302 w/ windage tray 254-5501 154-5606
154-5403
SB Ford, 351 Windsor
MAIN BOLT KITS Ford Modular, 4.6L & 5.4L 2V/3V/4V w/o windage tray 156-5401 156-5802
APPLICATION 2-BOLT 4-BOLT Ford Modular, 4.6L 4V w/ windage tray --- 256-5701
BB Ford, 429-460 155-5402 155-5501
SB Chevy, Large journal - hex nut 134-5001 134-5202 Chrysler 318-440 Wedge (hex) 140-5401 ---
SB Chevy, Small journal 134-5002 --- Chrysler 318-440 Wedge (12 pt. nuts) 140-5402 ---
BB Chevy, 396-402-427-454 135-5002 135-5201 Pontiac 3800 V6 supercharged (1999 & later) (hex) 193-5401 ---
SB Ford, 289-302 - front or rear sump 154-5001 154-5201 Pontiac 3800 V6 supercharged (1999 & later) (12 pt. nuts) 193-5402 ---
Chrysler 426 Hemi with cross bolts 145-5201 --- Pontiac 400-455 194-5401 194-5601
138
