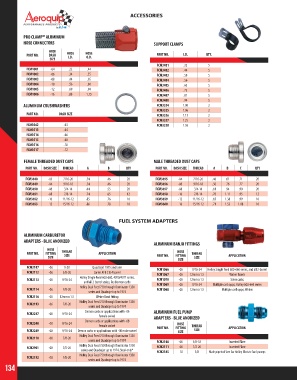

Page 134 - 2018 Master Catalog

ACCESSORIES

PRO CLAMP™ ALUMINUM
HOSE CONNECTORS SUPPORT CLAMPS

HOSE
PART NO. DASH HOSE HOSE PART NO. I.D. QTY.
O.D.
I.D.
SIZE
FCM3481 .25 5
FCM1001 -04 .22 .44 FCM3482 .44 5
FCM1002 -06 .34 .55 FCM3483 .50 5
FCM1003 -08 .44 .65 FCM3484 .56 5
FCM1004 -10 .56 .80 FCM3485 .63 5
FCM1005 -12 .69 .94 FCM3486 .75 5
FCM1006 -16 .88 1.15 FCM3487 .81 5
FCM3488 .94 5
ALUMINUM CRUSHWASHERS FCM3534 1.00 2
FCM3535 1.06 2
PART NO. DASH SIZE FCM3536 1.13 2
FCM3537 1.25 2
FCM3642 -03 FCM3538 1.50 2
FCM3513 -04
FCM3514 -06
FCM3515 -08
FCM3516 -10
FCM3517 -12

FEMALE THREADED DUST CAPS MALE THREADED DUST CAPS
PART NO. DASH SIZE THREAD A B QTY PART NO. DASH SIZE THREAD A B C QTY

FCM3648 -03 7/16-20 .54 .46 20 FCM3655 -04 7/16-20 .46 .61 .71 20
FCM3649 -04 9/16-18 .54 .46 20 FCM3656 -06 9/16-18 .50 .76 .77 20
FCM3650 -06 3/4-16 .64 .55 20 FCM3657 -08 3/4-16 .61 .94 .90 20
FCM3651 -08 7/8-14 .74 .65 12 FCM3658 -10 7/8-14 .70 1.11 .95 12
FCM3652 -10 11/16-12 .85 .76 10 FCM3659 -12 11/16-12 .65 1.38 .99 10
FCM3653 -12 15/16-12 .86 .78 10 FCM3660 -16 15/16-12 .71 1.53 1.08 10

FUEL SYSTEM ADAPTERS

ALUMINUM CARBURETOR
ADAPTERS - BLUE ANODIZED
ALUMINUM BANJO FITTINGS
HOSE
HOSE
PART NO. FITTING THREAD APPLICATION PART NO. FITTING THREAD APPLICATION
SIZE
SIZE SIZE SIZE
FCM2107 -06 1-20 Quadrajet 1975 and later FCM1066 -06 9/16-24 Holley Single Feed 600-660 series, and all 2-barrel
FCM2112 -06 5/8-20 Carter AFB 2 & 4 barrel FCM1067 -06 12mm x 1.5 Weber Bowls
Holley Single Feed 600-660, 4010/4011 series,
FCM2113 -06 9/16-24 FCM1070 -06 12mm x 1.5 Solex carbs
and all 2-barrel series; fits Demon carbs
Holley Dual Feed 750 through Dominator 1350 FCM1069 -06 9/16-24 Multiple carb apps, Holley 600-660 series
FCM2114 -06 7/8-20 FCM1068 -06 12mm x 1.5 Multiple carb apps, Weber
series and Quadrajet up to 1974
FCM2116 -06 12mm x 1.5 Weber Bowl fitting
Holley Dual Feed 750 through Dominator 1350
FCM2193 -06 7/8-20
series and Quadrajet up to 1974
Demon carbs or applications with -06 ALUMINUM FUEL PUMP
FCM2247 -06 9/16-24
female swivel ADAPTERS - BLUE ANODIZED
Demon carbs or applications with -08
FCM2248 -08 9/16-24 HOSE
female swivel PART NO. FITTING THREAD APPLICATION
FCM2249 -08 9/16-24 Demon carbs or applications with -08 male swivel SIZE SIZE
Holley Dual Feed 750 through Dominator 1350
FCM2110 -08 7/8-20
series and Quadrajet up to 1974 FCM2108 -06 5/8-18 Inverted Flare
Holley Dual Feed 750 through Dominator 1350
FCM2961 -08 7/8-20 FCM2111 -06 1/2-20 Inverted Flare
series and Quadrajet up to 1974, Steel only* FCM2185 -10 3/8 Male pipe to Flare for Holley Electric fuel pumps
Holley Dual Feed 750 through Dominator 1350
FCM2192 -08 7/8-20
series and Quadrajet up to 1974
134
