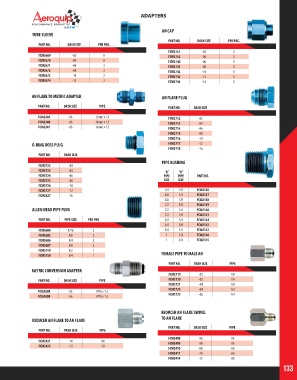

Page 133 - 2018 Master Catalog

ADAPTERS

AN CAP
TUBE SLEEVE
PART NO. DASH SIZE PER PKG.
PART NO. DASH SIZE PER PKG.
FCM3751 -03 2
FCM3669 -03 6 FCM3752 -04 2
FCM3670 -04 6 FCM3740 -06 1
FCM3671 -06 2 FCM3741 -08 1
FCM3672 -08 2 FCM3742 -10 1
FCM3673 -10 2 FCM3743 -12 1
FCM3674 -12 2 FCM3744 -16 1

AN FLARE TO METRIC ADAPTER AN FLARE PLUG

PART NO. DASH SIZE PIPE PART NO. DASH SIZE

FCM2246 -06 12mm x 1.5 FCM3712 -03
FCM2240 -06 14mm x 1.5 FCM3713 -04
FCM2241 -06 16mm x 1.5 FCM3714 -06
FCM3715 -08
FCM3716 -10
O-RING BOSS PLUG FCM3717 -12
FCM3718 -16
PART NO. DASH SIZE
PIPE BUSHING
FCM3722 -03
FCM3723 -04 “A” “B”
FCM3724 -06 PIPE PIPE PART NO.
FCM3725 -08 SIZE SIZE
FCM3726 -10
FCM3727 -12 1/4 1/8 FCM2136
FCM3827 -16 3/8 1/4 FCM2137
3/8 1/8 FCM2138
1/2 3/8 FCM2139
ALLEN HEAD PIPE PLUG 1/2 1/4 FCM2140
1/2 1/8 FCM2141
PART NO. PIPE SIZE PER PKG 3/4 1/4 FCM2144
3/4 3/8 FCM2143
FCM3684 1/16 2 3/4 1/2 FCM2142
FCM3685 1/8 2 1 1/2 FCM2146
FCM3686 1/4 2 1 3/4 FCM2145
FCM3687 3/8 2
FCM3749 1/2 1
FCM3750 3/4 1 FEMALE PIPE TO MALE AN
PART NO. DASH SIZE PIPE
METRIC CONVERSION ADAPTER
FCM2719 -03 1/8
PART NO. DASH SIZE PIPE FCM2720 -03 1/4
FCM2721 -04 1/8
FCM2608 -06 M16 x 1.5 FCM2723 -04 1/4
FCM2609 -06 M18 x 1.5 FCM2725 -06 1/4

REDUCER AN FLARE SWIVEL
REDUCER AN FLARE TO AN FLARE TO AN FLARE
PART NO. DASH SIZE PIPE
PART NO. DASH SIZE PIPE
FCM2408 -06 -04
FCM2421 -10 -08 FCM2409 -08 -04
FCM2422 -12 -10
FCM2410 -08 -06
FCM2411 -10 -06
FCM2414 -12 -08
133
