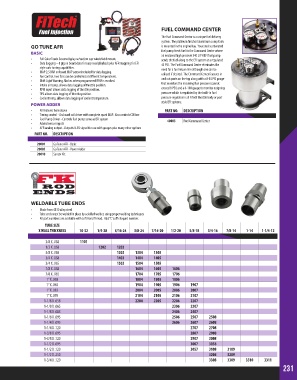

Page 231 - 2018 Master Catalog

FUEL COMMAND CENTER
The Fuel Command Center is a unique fuel delivery
system. The platinum finished aluminum sump tank
GO TUNE AFR is mounted in the engine bay. Your stock carbureted
BASIC fuel pump feeds fuel to the Command Center where
an enclosed high pressure 340 L/PH EFI fuel pump
• Full Color Touch Screen display w/suction cup windshield mount. sends the fuel along to the EFI system at a regulated
• Data Logging – 8 gig on board data for easy read playback plus AFR mapping for EFI 43 PSI. The Fuel Command Center eliminates the
style carb tuning capabilities. need for a fuel return line although one can be
• MAP 2.5 BAR on board MAP sensor included for data logging.
• Fan Control, two fans can be controlled at different temperatures. utilized if desired. The Command Center features in
• Shift Light Warning, flashes when programmed RPM is reached. and out ports on the top along with a 0-15 PSI gauge
• Intake air temp, allows data logging of throttle position. that monitors the incoming fuel pressure (cannot
• RPM input allows data logging of throttle position. exceed 8 PSI) and a 0-100 gauge to monitor outgoing
• TPS allows data logging of throttle position. pressure which is regulated by the built-in fuel
• Coolant temp, allows data logging of coolant temperature. pressure regulator in all FiTech throttle body or port
POWER ADDER style EFI systems.
• All features from above PART NO. DESCRIPTION
• Timing control - On board coil driver with complete spark MAP. Also controls CDI box
• Fuel Pump Driver - Controls fuel pump same as EFI system 40003 Fuel Command Center
• Added sensor inputs
• AFR analog output - Outputs 0-5V signal for use with gauges plus many other options
PART NO. DESCRIPTION
20001 Go Tune AFR - Basic
20002 Go Tune AFR - Power Adder
20010 Sensor Kit

WELDABLE TUBE ENDS
• Made from 4130 alloy steel
• Tube ends must be welded in place by a skilled welder, using proper welding techniques
• All part numbers are available with Left Hand Thread. Add “L” suffix to part number.
TUBE SIZE
X WALL THICKNESS 10-32 1/4-28 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 3/4-16 7/8-14 1-14 1-1/4-12

3/8 X .058 1101
1/2 X .058 1202 1203
5/8 X .058 1303 1304 1305
3/4 X .058 1403 1404 1405
3/4 X .065 1503 1504 1505
7/8 X .058 1604 1605 1606
7/8 X .065 1704 1705 1706
1” X .058 1804 1805 1806
1” X .065 1904 1905 1906 1907
1” X .083 2004 2005 2006 2007
1” X .095 2104 2105 2106 2107
1-1/8 X .058 2204 2205 2206 2207
1-1/8 X .065 2306 2307
1-1/8 X .083 2406 2407
1-1/8 X .095 2506 2507 2508
1-1/4 X .095 2606 2607 2608
1-1/4 X .120 2707 2708
1-3/8 X .095 2807 2908
1-3/8 X .120 2907 3008
1-1/2 X .095 3007 3058
1-1/2 X .120 3057 3108 3109
1-1/2 X .250 3208 3209
1-3/4 X .120 3308 3309 3310 3311
231
