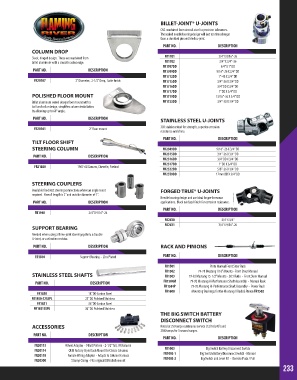

Page 233 - 2018 Master Catalog

BILLET-JOINT® U-JOINTS
CNC-machined from aircraft steel to precision tolerances.
The sealed needle bearing design will last ten times longer
than a standard pin and block u-joint.
PART NO. DESCRIPTION
COLUMN DROP
Sleek, hinged design. These are machined from FR1701 3/4” X 9/16”-26
billet aluminum with a smooth radius edge. FR1702 3/4” X 3/4”-36
FR1707DD 3/4” X 1” DD
PART NO. DESCRIPTION FR1709DD 9/16”-26 X 3/4” DD
FR1712DD 1”-48 X 3/4” DD
FR20107 2” Diameter, 2-1/2” Drop, Satin finish FR1715DD 3/4”-36 X 3/4” DD
FR1716DD 3/4” DD X 3/4” DD
FR1717DD 1” DD X 3/4” DD
POLISHED FLOOR MOUNT FR1719DD 13/16”-36 X 3/4” DD
Billet aluminum swivel design floor mount with a FR1733DD 3/4”-30 X 3/4” DD
ball and collar design, simplifies column installation
by allowing up to 60° angle.
PART NO. DESCRIPTION STAINLESS STEEL U-JOINTS
FR20101 2” Floor mount 303 stainless steel for strength, superior corrosion
resistance and shine.
PART NO. DESCRIPTION
TILT FLOOR SHIFT
STEERING COLUMN FR2509DD 9/16”-26 X 3/4” DD

PART NO. DESCRIPTION FR2515DD 3/4”-36 X 3/4” DD
FR2516DD 3/4” DD X 3/4” DD
FR2517DD 1” DD X 3/4” DD
FR21020 1967-68 Camaro, Chevelle, Firebird
FR2522DD 5/8”-36 X 3/4” DD
FR2559DD 17mm DD X 3/4” DD
STEERING COUPLERS
Available for direct steering connections where an angle is not FORGED TRUE® U-JOINTS
required. Overall length is 2” and outside diameter of 1”.
Needle bearing design and are ideal for performance
PART NO. DESCRIPTION applications. Black oxidized finish for corrosion resistance.
PART NO. DESCRIPTION
FR1940 3/4” X 9/16”-26
FR2630 3/4” X 3/4”
SUPPORT BEARING FR2631 3/4” X 9/16”-26
Needed when using a three-joint steering system, a Double
U-Joint, or a vibration resistor.
PART NO. DESCRIPTION RACK AND PINIONS

FR1810 Support Bearing - Zinc Plated PART NO. DESCRIPTION
FR1501 Pinto Manual Front Steer Rack
FR1502 74-78 Mustang II 16” Mounts - Front Steer Manual
STAINLESS STEEL SHAFTS FR1503 79-93 Mustang 15 1/2” Mounts - 20:1 Ratio - Front Steer Manual
PART NO. DESCRIPTION FR1504M 79-93 Mustang Hi-Performance Shaft Assembly - Manual Rack
FR1504P 79-93 Mustang Hi-Performance Shaft Assembly - Power Rack
FR1600 Mounting Bushings for the Mustang II Rack & Pinion FR1502
FR1850 18” DD Carbon Steel
FR1850-22SSPL 22” DD Polished Stainless
FR1851 36” DD Carbon Steel
FR1851SSPL 36” DD Polished Stainless
THE BIG SWITCH BATTERY
DISCONNECT SWITCH
ACCESSORIES Rated at 250 amps continuous service (12/16/24V) and
2500 amps for 5 second surges.
PART NO. DESCRIPTION
PART NO. DESCRIPTION
FR20113 Wheel Adapter - 9 Bolt Pattern - 2-1/2” Tall, FR Column
FR20114 OEM Factory Style Dash Mount for Classic Columns FR1003 Big Switch Battery Disconnect Switch
FR20118 Female Wiring Adapter - Adapts to Column Harness FR1003-1 Big Switch Battery Disconnect Switch - Manual
FR20300 Stramp Clamp - Fits original OEM dash mount FR1003-2 Big Switch and Level Kit - Remote Push / Pull
233
