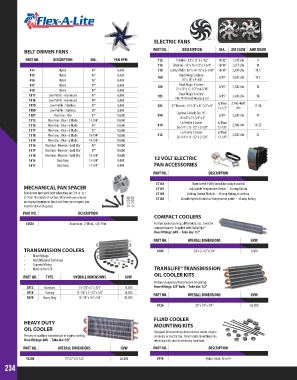

Page 234 - 2018 Master Catalog

ELECTRIC FANS
BELT DRIVEN FANS PART NO. DESCRIPTION DIA. AIR FLOW AMP DRAW

PART NO. DESCRIPTION DIA. FAN RPM 112 Trimline - 12” x 13” x 3-1/2” 10/12” 1,105 cfm 8
116 Trimline - 16” x 16-1/2” x 3-3/4” 10/16” 2,215 cfm 11
414 Nylon 14” 8,000 118 LoBoy (Pull) - 16” x 16-1/2” x 3-3/16” 10/16” 2,500 cfm 18.5
415 Nylon 15” 8,000 160 Black Magic S-blade - 8/15” 3,000 cfm 19.5
416 Nylon 16” 8,000 16” x 18” x 4-1/8”
417 Nylon 17” 8,000 180 Black Magic X-treme - 8/15” 3,300 cfm 18
418 Nylon 18” 8,000 21-1/2” x 17-1/2” x 4-3/16”
1017 Low Profile - Aluminum 17” 8,000 185 Black Magic X-treme - 8/15” 3,300 cfm 18
1018 Low Profile - Aluminum 18” 8,000 Fits 79-93 Ford Mustang 5.0
1070 Low Profile - Stainless 17” 8,000 295 27” Electric - 27-1/2” x 17-1/2” x 4” 8/ Dual 2,740-4600 17-28
1080 Low Profile - Stainless 18” 8,000 13-1/2” cfm
1307 Flex Fans - Red 17” 10,000 398 Syclone S-blade Fan 16” - 8/15” 2,500 cfm 17
16-5/8” x 15-3/4” x 4”
1315 Flex Fans - Blue - 5 Blade 15-1/4” 10,000 Lo-Profile S-blade - 8/ Dual
1316 Flex Fans - Blue - 6 Blade 16” 10,000 410 26-1/4” x 15-1/2” x 2-5/8” 12-1/8” 2,500 cfm 14-22
1317 Flex Fans - Blue - 6 Blade 17” 10,000 Lo-Profile S-blade - 8/ Dual
1318 Flex Fans - Blue - 6 Blade 18-1/4” 10,000 412 26-1/4” x 15-1/2” x 2-5/8” 12-1/8” 2,500 cfm 22
1319 Flex Fans - Blue - 6 Blade 19-3/8” 10,000
1516 Flex Fans - Reverse - Gold Star 16” 10,000
1517 Flex Fans - Reverse - Gold Star 17” 10,000
1518 Flex Fans - Reverse - Gold Star 18-1/4” 10,000
1615 Race Fans 15-1/4” 8,000 12 VOLT ELECTRIC
1617 Race Fans 17-1/8” 8,000 FAN ACCESSORIES
PART NO. DESCRIPTION

31143 Illuminated 3-Way switch for cockpit control
MECHANICAL FAN SPACER 31147 Adjustable Temperature Sensor - 20 amp Rating
Belt-driven fans work best when they are 3/4 in. to 1 31149 Cooling Control Module - 40 amp Rating at start-up
in. from the radiator’s surface. Whenever you remove 31165 Variable Speed Control w/ temperature probe - 45 amp Rating
an original equipment fan clutch from your engine, you
need to add a fan spacer.
PART NO. DESCRIPTION
COMPACT COOLERS
14556 Aluminum, 2” Thick, 5/8” Pilot For fuel, turbo bearings, differential, etc. Great for
cramped spaces. Supplied with GatorClips®.
Hose fittings: 6AN - Tube dia: 1/2”
PART NO. OVERALL DIMENSIONS GVW

TRANSMISSION COOLERS 4109 20” x 2-1/2” x 3/4” 9,000
• Billet Fittings
• High Efficiency Turbulator
• Superior Mixing
• Made in the USA TRANSLIFE® TRANSMISSION
OIL COOLER KITS
PART NO. TYPE OVERALL DIMENSIONS GVW
Primary or auxiliary transmission oil cooling.
3812 Standard 15-7/8” x 5” x 3/4” 12,000 Hose fittings: 3/8” barb - Tube dia: 1/2”
3818 Towing 15-7/8” x 7-1/2” x 3/4” 18,000 PART NO. OVERALL DIMENSIONS GVW
3820 Heavy Duty 15-7/8” x 10” x 3/4” 20,000
4126 20” x 10” x 3/4” 26,000

FLUID COOLER
HEAVY DUTY MOUNTING KITS
OIL COOLER Designed for mounting a transmission cooler, engine
Primary or auxiliary transmission or engine cooling. oil cooler, or electric fan. They include mounting rods,
Hose fittings: 8AN - Tube dia: 5/8” retaining nuts, and all necessary hardware.
PART NO. OVERALL DIMENSIONS GVW PART NO. DESCRIPTION

45208 15” x 7” x 1-1/2” 20,000 3910 Nylon, Black, Set of 4
234
