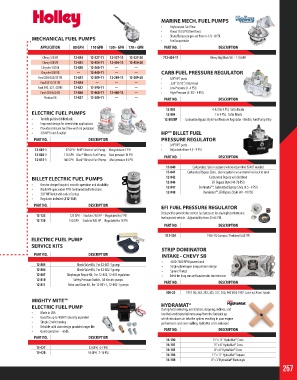

Page 257 - 2018 Master Catalog

MARINE MECH. FUEL PUMPS
• High output fuel flow
• Flows 110 GPH (free flow)
MECHANICAL FUEL PUMPS • • Shutoff pressure pre-set from 6-1/2 - 8 PSI
Fuel/vapor tube
APPLICATION 80 GPH 110 GPH 130+ GPH 170+ GPH PART NO. DESCRIPTION
Chevy S/B V8 12-834 12-327-11 12-327-13 12-327-20 712-454-11 Chevy Big Block V8 - 110 GPH
Chevy B/B V8 12-835 12-454-11 12-454-13 12-454-20
Chrysler S/B V8 12-838 12-360-11 --- ---
Chrysler B/B V8 --- 12-440-11 --- --- CARB FUEL PRESSURE REGULATOR
Ford 289/302/351W 12-833 12-289-11 12-289-13 12-289-20 • 3/8” NPT ports
Ford 351C/351M 12-854 --- --- --- • .220” (7/32”) restriction
Ford 390, 427, 428FE 12-832 12-390-11 --- --- • Low Pressure (1-4 PSI)
Ford 429/460 V8 12-860 12-460-11 12-460-13 --- • High Pressure (4-1/2 - 9 PSI)
Pontiac V8 12-837 12-389-11 --- --- PART NO. DESCRIPTION

12-803 4-1/2 to 9 PSI, Satin Finish
ELECTRIC FUEL PUMPS 12-804 1 to 4 PSI, Satin Finish
• Tumble polished billet look 12-803BP Carburetor Bypass Style Fuel Pressure Regulator - Electric Fuel Pump Only
• Improved design for street/strip applications
• Provides constant fuel flow with no pulsation
• 3/8 NPT inlet & outlet HP™ BILLET FUEL
PART NO. DESCRIPTION PRESSURE REGULATOR
• 3/8” NPT ports
12-801-1 97 GPH - Red® Electric Fuel Pump - Max pressure 7 PSI • Adjustable from 4.5 - 9 PSI
12-802-1 110 GPH - Blue® Electric Fuel Pump - Max pressure 14 PSI PART NO. DESCRIPTION
12-815-1 140 GPH - Black® Electric Fuel Pump - Max pressure 14 PSI
12-840 Carbureted, Use in systems where return line IS NOT needed
12-841 Carbureted Bypass Style, Use in systems w/ a return line back to tank
BILLET ELECTRIC FUEL PUMPS 12-842 Carbureted Bypass w/ idle bleed
• Gerotor design for quiet, smooth operation and durability 12-846 EFI Bypass Style (40-70 PSI)
12-847
• Black Mil-spec nickel PTFE hard anodized billet base Dominator™, Carbureted Bypass Style (4.5 - 9 PSI)
• 3/8” NPT inlet and outlet fittings 12-848 Dominator™, EFI Bypass Style (40 - 70 PSI)
• Regulator included (#12-150)
PART NO. DESCRIPTION EFI FUEL PRESSURE REGULATOR
Designed to provide the correct fuel pressure for any high performance
12-125 125 GPH - Stock to 750 HP - Regulated to 7 PSI fuel injected vehicle. Adjustability from 35-65 PSI.
12-150 150 GPH - Stock to 900 HP - Regulated to 16 PSI
PART NO. DESCRIPTION

512-501 1985-92 Camaro / Firebired 5.0L TPI
ELECTRIC FUEL PUMP
SERVICE KITS
STRIP DOMINATOR
PART NO. DESCRIPTION INTAKE - CHEVY SB
• 4500-7600 RPM power band
12-805 Check Valve Kit, For 12-801-1 pump • Single plane/open deep plenum design
12-806 Check Valve Kit, For 12-802-1 pump • Square Flange
12-807 Diaphragm Repair Kit, For 12-803, 12-804 regulators • Ideal for drag cars with automatic transmission
12-810 Safety Pressure Switch, All electric pumps PART NO. DESCRIPTION
12-811 Rotor and Vane Kit, For 12-801-1, 12-802-1 pumps
300-25 1957-86; 262, 283, 305, 327, 350, 400 V8 & 1987-Later w/ Alum. heads
MIGHTY MITE™
ELECTRIC FUEL PUMP HYDRAMAT®
During hard cornering, acceleration, stopping, inclines, and
• Made in USA low fuel conditions fuel runs away from the fuel pick up
• Good for up to 400HP naturally aspirated which introduces air into the system resulting in poor engine
• Simple 2 wire hookup performance and even stalling. HydraMat is the solution!
• Reliable solid state design provides longer life
• Quiet operation - 65db PART NO. DESCRIPTION
PART NO. DESCRIPTION
16-100 15” x 15” HydraMat® Cross
16-101 15” x 8” HydraMat® Cross
12-427 32 GPH, 4-7 PSI 16-103 8” x 8” HydraMat® Cross
12-428 34 GPH, 7-10 PSI
16-106 11” x 11” HydraMat® Square
16-108 8” x 3” HydraMat® Rectangle
257
