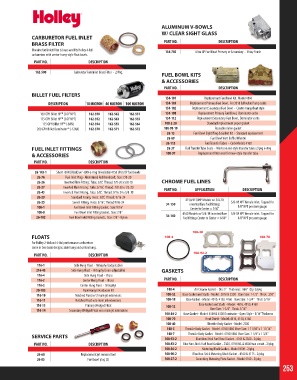

Page 253 - 2018 Master Catalog

ALUMINUM V-BOWLS
W/ CLEAR SIGHT GLASS
CARBURETOR FUEL INLET
BRASS FILTER PART NO. DESCRIPTION
Moraine fuel inlet filter is brass and fits Holley 4-bbl 134-78S Ultra XP Fuel Bowl Primary or Secondary - Shiny Finish
carburetors with center-hung-style float bowls.
PART NO. DESCRIPTION

162-500 Carburetor Fuel Inlet Brass Filter - 2/Pkg.
FUEL BOWL KITS
& ACCESSORIES
PART NO. DESCRIPTION
BILLET FUEL FILTERS
134-101 Replacement Fuel Bowl Kit, Model 4160
DESCRIPTION 10 MICRON 40 MICRON 100 MICRON 134-103 Replacement Primary Fuel Bowl, For 3310 & Double Pump carbs
134-102 Replacement Secondary Fuel Bowl - Center-hung-float style
100 GPH Billet HP™ (3/8” NPT) 162-550 162-562 162-551 134-108 Replacement Primary Fuel Bowl, Dominator carbs
175 GPH Billet HP™ (3/8” NPT) 162-552 162-563 162-553 134-112 Replacement Secondary Fuel Bowl, Dominator carbs
175 GPH Billet HP™ (-8AN) 162-554 162-555 162-564 108-2-20 Standard replacement paper gasket
260 GPH Billet Dominator™ (-12AN) 162-570 162-571 162-572 108-98-10 Reusable nylon gasket
26-13 Fuel Bowl Sight Plug & Gasket Kit - Standard replacement
26-89 Fuel Bowl Vent Baffle/Whistle
26-115 Fuel Transfer Tubes - Carb Models 4160
FUEL INLET FITTINGS 26-37 Fuel Transfer Tube Seals - Works on old-style transfer tubes 2/pkg o-ring
& ACCESSORIES 108-97 Replacement Viton seal for new-style transfer tube
PART NO. DESCRIPTION

26-143-1 Short -8AN (Black) w/ -8AN o-ring threads for 4150 Ultra XP fuel bowls
26-76 Fuel Inlet Plug - Aluminized Red Anodized; Size: 7/8-20
26-26 Inverted Flare Fitting: Tube: 3/8”, Thread: 7/8-20 x 5/8-18 CHROME FUEL LINES
26-27 Inverted Flare Fitting: Tube: 5/16”, Thread: 7/8-20 x 1/2-20 PART NO. APPLICATION DESCRIPTION
26-43 Inverted Flare Fitting, Tube: 3/8”, Thread: 9/16-24 x 5/8-18
26-29 Standard Fitting, Hose: 3/8”, Thread: 9/16-24
26-25 Swivel Fitting, Hose: 5/16”, Thread 9/16-24 34-150 4150/4150HP Models w/ 5/8-18 5/8-18 NPT female inlet. Tapped for
inverted flare fuel fittings
108-1 Fuel Bowl Inlet Fitting Gasket, Size: 9/16” Center to Center = 9.50” 1/8” NPT pressure gauge
108-8 Fuel Bowl Inlet Fitting Gasket, Size: 7/8” 4160 Models w/ 5/8-18 inverted flare 5/8-18 NPT female inlet. Tapped for
26-102 Fuel Bowl Inlet Fitting Gaskets, Size: 7/8” - Nylon 34-160 fuel fittings Center to Center = 8.80” 1/8” NPT pressure gauge

108-40
FLOATS 108-4 108-70
For Holley 2-bbl and 4-bbl performance carburetors
come in two basic designs: side hung and center hung.
108-92-2
PART NO. DESCRIPTION

116-1 Side Hung Float - Nitrophyl (adjustable)
216-43 Side Hung Float - Nitrophyl (non-adjustable) GASKETS
116-4 Side Hung Float - Brass
116-2 Center Hung Float - Brass PART NO. DESCRIPTION
116-3 Center Hung Float - Nitrophyl
20-105 Float Hanger Hardware Kit 108-4 Air Cleaner Gasket - Dia: 5” Thickness: .060” Qty: 3/pkg
116-10 Notched Float w/ 2 main jet extensions 108-52 Base Gasket and Studs - Model: 2010 & 2300 Bore Size: 1-1/2” Thick: .250”
116-11 Notched Float w/o main jet extensions 108-18 Base Gasket - Model: 4010, 4150, 4160 Bore Size: 1-3/4” Thick: 5/16”
116-13 Primary Wedged Float 108-12 Base Gasket and Studs - Model: 4010, 4150, 4160
116-14 Secondary Wedged Float w/o main jet extensions Bore Size: 1-3/4” Thick: 5/16”
108-84-2 Base Gasket - Model: 4500 & 4500 Dominator - Open Style - 1/16” Thickness
108-70 Heat Shield - Model: 4010, 4150, 4160
108-40 Throttle Body Gasket - Model: 2300
108-5 Throttle Body Gasket - Model: 4150/4160 Bore Size: 1-11/16” x 1-11/16”
108-7
SERVICE PARTS 108-92-2 Throttle Body Gasket - Model: 4150/4160 Bore Size: 1-3/4” x 1-3/4”
Blue Non-Stick Fuel Bowl Gasket - 4165 & 2300 - 2/pkg
PART NO. DESCRIPTION 108-83-2 Blue Non-Stick Fuel Bowl Gasket - 2300, 4150/60, & 4500 two circuit - 2/pkg
108-36-2 Metering Block Gasket - Model 4500 - 2/pkg
26-68 Replacement jet removal tool 108-90-2 Blue Non-Stick Metering Block Gasket - 4160 & 4175 - 2/pkg
26-85 Fuel bowl plug (2) 108-27-2 Secondary Metering Plate Gasket - Model 4160 - 2/pkg
253
