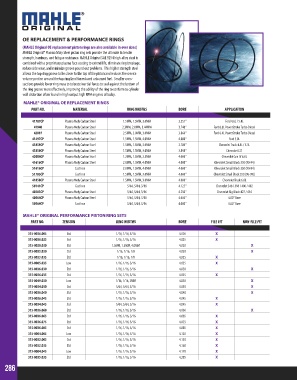

Page 286 - 2018 Master Catalog

OE REPLACEMENT & PERFORMANCE RINGS

(MAHLE Original OE replacement piston rings are also available in over sizes)
MAHLE Original® Plasma Moly Steel piston ring sets provide the ultimate in tensile
strength, hardness, and fatigue resistance. MAHLE Original SAE 9254 high-alloy steel is
combined with a proprietary plasma face coating to extend life, eliminate ring breakage,
reduce side wear, and minimize groove pound out problems. This higher strength steel
allows the top ring groove to be closer to the top of the piston and reduces the crevice
volume portion around the top ring land for reduced unburned fuel. Smaller cross-
sections provide lower ring mass to tolerate inertial forces to seal against the bottom of
the ring groove more effectively, improving the ability of the ring to conform to cylinder
wall distortion often found in high output high RPM engines of today.
MAHLE® ORIGINAL OE REPLACEMENT RINGS
PART NO. MATERIAL RING WIDTHS BORE APPLICATION

41787CP Plasma Moly Carbon Steel 1.5MM, 1.5MM, 3.0MM 3.551" Ford 4.6L / 5.4L
41940 Plasma Moly Carbon Steel 2.3MM, 2.0MM, 3.44MM 3.740" Ford 6.0L PowerStroke Turbo Diesel
42097 Plasma Moly Carbon Steel 2.5MM, 2.0MM, 3.0MM 3.866" Ford 6.4L PowerStroke Turbo Diesel
41497CP Plasma Moly Carbon Steel 1.5MM, 1.5MM, 4.0MM 4.000" Ford 5.0L
41859CP Plasma Moly Carbon Steel 1.5MM, 1.5MM, 3.0MM 3.780" Chevrolet Truck 4.8L / 5.3L
41850CP Plasma Moly Carbon Steel 1.5MM, 1.5MM, 3.0MM 3.898" Chevrolet LS1
42084CP Plasma Moly Carbon Steel 1.2MM, 1.5MM, 2.5MM 4.000" Chevrolet Gen IV 6.0L
41616CP Plasma Moly Carbon Steel 2.0MM, 1.5MM, 4.0MM 4.000" Chevrolet Small Block 350 (90-94)
51616CP Cast Iron 2.0MM, 1.5MM, 4.0MM 4.000" Chevrolet Small Block 350 (90-94)
51785CP Cast Iron 1.5MM, 1.5MM, 3.0MM 4.000" Chevrolet Small Block 350 (96-99))
41858CP Plasma Moly Carbon Steel 1.5MM, 1.5MM, 3.0MM 4.000" Chevrolet Truck 6.0L
50141CP Cast Iron 5/64, 5/64, 3/16 4.125" Chevrolet 348 / 396 / 400 / 402
40203CP Plasma Moly Carbon Steel 5/64, 5/64, 3/16 4.250" Chevrolet Big Block 427 / 454
40564CP Plasma Moly Carbon Steel 5/64, 5/64, 3/16 4.000" 4.00" Bore
50564CP Cast Iron 5/64, 5/64, 3/16 4.000" 4.00" Bore

MAHLE® ORIGINAL PERFORMANCE PISTON RING SETS
PART NO. TENSION RING WIDTHS BORE FILE FIT NON-FILE FIT

315-0036.005 Std 1/16, 1/16, 3/16 4.005 X
315-0036.025 Std 1/16, 1/16, 3/16 4.025 X
315-0020.030 Std 1.5MM, 1.5MM, 4.0MM 4.030 X
315-0033.030 Std 1/16, 1/16, 1/8 4.030 X
315-0033.035 Std 1/16, 1/16, 1/8 4.035 X
315-0005.035 Low 1/16, 1/16, 3/16 4.035 X
315-0036.030 Std 1/16, 1/16, 3/16 4.030 X
315-0036.035 Std 1/16, 1/16, 3/16 4.035 X
315-0049.030 Low 1/16, 1/16, 3MM 4.030 X
315-0034.030 Std 5/64, 5/64, 3/16 4.030 X
315-0036.040 Std 1/16, 1/16, 3/16 4.040 X
315-0036.045 Std 1/16, 1/16, 3/16 4.045 X
315-0034.045 Std 5/64, 5/64, 3/16 4.045 X
315-0036.060 Std 1/16, 1/16, 3/16 4.060 X
315-0036.065 Std 1/16, 1/16, 3/16 4.065 X
315-0036.075 Std 1/16, 1/16, 3/16 4.075 X
315-0036.085 Std 1/16, 1/16, 3/16 4.085 X
315-0004.005 Low 1/16, 1/16, 3/16 4.130 X
315-0032.005 Std 1/16, 1/16, 3/16 4.130 X
315-0032.035 Std 1/16, 1/16, 3/16 4.160 X
315-0004.045 Low 1/16, 1/16, 3/16 4.170 X
315-0035.035 Std 1/16, 1/16, 3/16 4.285 X
