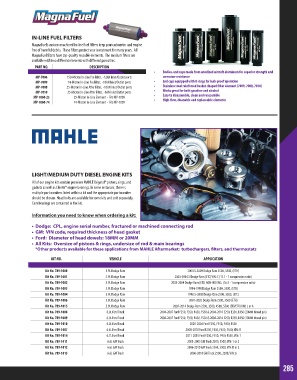

Page 285 - 2018 Master Catalog

IN-LINE FUEL FILTERS
MagnaFuel’s custom-machined In-line Fuel Filters keep your carburetor and engine
free of harmful debris. These filters protect your investment for many years. All
MagnaFuel filters have top-quality reusable elements. The medium filters are
available with two different elements with different porosities.
PART NO. DESCRIPTION
• Bodies, end caps made from anodized aircraft aluminum for superior strength and
MP-7006 150-Micron In-Line Pre Filter, -12AN Inlet/Outlet ports corrosion-resistance
MP-7009 74-Micron In-Line Pre Filter, -10AN Inlet/Outlet ports • End caps equipped with O-rings for leak-proof operation
MP-7008 25-Micron In-Line After Filter, -10AN Inlet/Outlet ports • Stainless steel reinforced basket-shaped filter element (7009, 7008, 7010)
MP-7010 25-Micron In-Line After Filter, -8AN Inlet/Outlet ports • Works great for both gasoline and alcohol
MP-7060-25 25-Micron In-Line Element - Fits MP-7008 • Easy to disassemble, clean and reassemble
MP-7060-74 74-Micron In-Line Element - Fits MP-7009 • High-flow, cleanable and replaceable elements

LIGHT/MEDIUM DUTY DIESEL ENGINE KITS
All of our engine kits contain premium MAHLE Original® pistons, rings, and
gaskets as well as Clevite® engine bearings. In some instances, there is
multiple part numbers listed within a kit and the appropriate part number
should be chosen. Head bolts are available for some kits and sold separately.
Cam bearings are contained in the kit.

Information you need to know when ordering a kit:
• Dodge: CPL, engine serial number, fractured or machined connecting rod
• GM: VIN code, required thickness of head gasket
• Ford: Diameter of head dowels: 18MM or 20MM
• All Kits: Oversize of pistons & rings, undersize of rod & main bearings
*Other products available for these applications from MAHLE Aftermarket: turbochargers, filters, and thermostats

KIT NO. VEHICLE APPLICATION

Kit No. 789-1000 5.9L Dodge Ram 2004.5-2009 Dodge Ram 2500, 3500, (ETH)
Kit No. 789-1001 5.9L Dodge Ram 2003-2004.5 Dodge Ram (ETC) VIN: C (17.1 - 1 compression ratio)
Kit No. 789-1002 5.9L Dodge Ram 2003-2004 Dodge Ram (ETC) NON-HO ENG. (16.3 - 1 compression ratio)
Kit No. 789-1003 5.9L Dodge Ram 1994-1998 Dodge Ram 2500, 3500, (ETB)
Kit No. 789-1004 5.9L Dodge Ram 1998.5-2002 Dodge Ram 2500, 3500, (ETC)
Kit No. 789-1006 5.9L Dodge Ram 2001-2002 Dodge Ram 2500, 3500 (ETH)
Kit No. 789-1015 5.9L Dodge Ram 2007-2014 Dodge Ram 2500, 3500, 4500, 5500 (ETJ/ETK) VIN: L or A
Kit No. 789-1008 6.0L Ford Truck 2004-2007 Ford F250, F350, F450, F550 & 2004-2010 E250, E350, E450 (20MM dowel pin)
Kit No. 789-1009 6.0L Ford Truck 2004-2007 Ford F250, F350, F450, F550 & 2004-2010 E250, E350, E450 (18MM dowel pin)
Kit No. 789-1010 6.0L Ford Truck 2003-2004 Ford F250, F350, F450, F550
Kit No. 789-1007 6.4L Ford Truck 2008-2010 Ford F250, F350, F450, F550, VIN: R
Kit No. 789-1014 6.7L Ford Truck 2011-2015 Ford F250, F350, F450, F550, VIN: T
Kit No. 789-1011 6.6L GM Truck 2001-2005 GM Truck 2500, 3500, VIN: 1 or 2
Kit No. 789-1012 6.6L GM Truck 2006-2010 GM Truck 2500, 3500, VIN: D or 2
Kit No. 789-1013 6.6L GM Truck 2006-2010 GM Truck 2500, 3500, VIN: 6
