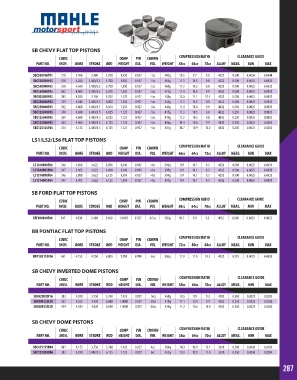

Page 287 - 2018 Master Catalog

SB CHEVY FLAT TOP PISTONS
CUBIC COMP PIN CROWN COMPRESSION RATIO CLEARANCE GUIDE
PART NO. INCH. BORE STROKE ROD HEIGHT DIA. VOL WEIGHT 58cc 64cc 70cc ALLOY MEAS. MIN MAX

SBC550766T01 310 3.766 3.480 5.700 1.550 0.927 -1cc 410g 10.5 9.7 9.0 4032 0.500 0.0036 0.0044
SBC550030F05 358 4.030 3.480/3.5 5.700 1.550 0.927 -5cc 464g 11.3 10.5 9.8 4032 0.500 0.0025 0.0033
SBC550040F05 359 4.040 3.480/3.5 5.700 1.550 0.927 -5cc 468g 11.3 10.5 9.8 4032 0.500 0.0025 0.0033
SBC550060F05 362 4.060 3.480/3.5 5.700 1.550 0.927 -5cc 477g 11.4 10.6 9.9 4032 0.500 0.0025 0.0033
SBC425030F05 383 4.030 3.750 5.700 1.425 0.927 -5cc 438g 12.0 11.1 10.4 4032 0.500 0.0025 0.0033
SBC250040F05 359 4.040 3.480/3.5 6.000 1.250 0.927 -5cc 432g 11.3 10.5 9.8 4032 0.500 0.0025 0.0033
SBC250060F05 362 4.060 3.480/3.5 6.000 1.250 0.927 -5cc 440g 11.4 10.6 9.9 4032 0.500 0.0025 0.0033
SBC125030F05 358 4.030 3.480/3.5 6.125 1.125 0.927 -5cc 415g 11.3 10.5 9.8 4032 0.250 0.0025 0.0033
SBC125040F05 359 4.040 3.480/3.5 6.125 1.125 0.927 -5cc 419g 11.3 10.5 9.8 4032 0.250 0.0025 0.0033
SBC125060F05 362 4.060 3.480/3.5 6.125 1.125 0.927 -5cc 426g 11.4 10.6 9.9 4032 0.250 0.0025 0.0033
SBC125125F05 374 4.125 3.480/3.5 6.125 1.125 0.927 -5cc 431g 11.7 10.9 10.2 4032 0.250 0.0025 0.0033

LS1/LS2/LS6 FLAT TOP PISTONS
CUBIC COMP PIN CROWN COMPRESSION RATIO CLEARANCE GUIDE
PART NO. INCH. BORE STROKE ROD HEIGHT DIA. VOL WEIGHT 66cc 64cc 72cc ALLOY MEAS. MIN MAX

LS1340898F04 346 3.898 3.622 6.098 1.340 0.945 -4cc 396g 9.9 10.1 9.3 4032 0.580 0.0025 0.0033
LS1340905F04 347 3.905 3.622 6.098 1.340 0.945 -4cc 398g 9.9 10.1 9.3 4032 0.580 0.0025 0.0033
LS1314898F04 346 3.898 3.622 6.125 1.314 0.927 -4cc 394g 9.9 10.1 9.3 4032 0.500 0.0025 0.0033
LS1314905F04 347 3.905 3.622 6.125 1.314 0.927 -4cc 397g 9.9 10.1 9.3 4032 0.500 0.0025 0.0033

SB FORD FLAT TOP PISTONS
CUBIC COMP PIN CROWN COMPRESSION RATIO CLEARANCE GUIDE
PART NO. INCH. BORE STROKE ROD HEIGHT DIA. VOL WEIGHT 58cc 64cc 70cc ALLOY MEAS. MIN MAX

SBF090030F06 347 4.030 3.400 5.400 1.090R 0.927 -6.5cc 385g 10.7 9.9 9.3 4032 0.500 0.0025 0.0033

BB PONTIAC FLAT TOP PISTONS
COMPRESSION RATIO CLEARANCE GUIDE
CUBIC COMP PIN CROWN
PART NO. INCH. BORE STROKE ROD HEIGHT DIA. VOL WEIGHT 72cc 80cc 84cc ALLOY MEAS. MIN MAX

BBP285155F06 461 4.155 4.250 6.800 1.285 0.990 -6cc 506g 11.9 11.0 10.5 4032 0.235 0.0025 0.0033

SB CHEVY INVERTED DOME PISTONS
CUBIC COMP PIN CROWN COMPRESSION RATIO CLEARANCE GUIDE
PART NO. INCH. BORE STROKE ROD HEIGHT DIA. VOL WEIGHT 58cc 64cc 70cc ALLOY MEAS. MIN MAX

SBC425030I16 383 4.030 3.750 5.700 1.425 0.927 -16cc 468g 10.5 9.9 9.3 4032 0.500 0.0025 0.0033
SBC000125I20 427 4.125 4.000 6.000 1.000R 0.927 -20cc 419g 11.1 10.4 9.9 4032 0.250 0.0025 0.0033
SBC000155I20 434 4.155 4.000 6.000 1.000R 0.927 -20cc 429g 11.2 10.6 10.0 4032 0.250 0.0025 0.0033

SB CHEVY DOME PISTONS
CUBIC COMP PIN CROWN COMPRESSION RATIO CLEARANCE GUIDE
PART NO. INCH. BORE STROKE ROD HEIGHT DIA. VOL WEIGHT 58cc 64cc 70cc ALLOY MEAS. MIN MAX

SBC425155D04 407 4.155 3.750 5.700 1.425 0.927 4cc 504g 14.3 13.1 12.1 2618 0.500 0.0046 0.0054
SBC125030D06 383 4.030 3.480/3.5 6.125 1.125 0.927 6cc 453g 13.0 12.0 11.0 2618 0.250 0.0046 0.0054

287
