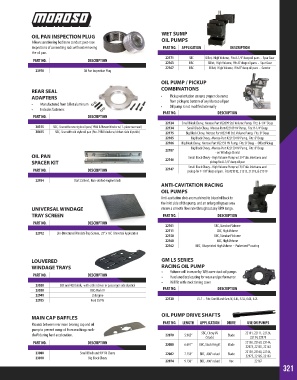

Page 321 - 2018 Master Catalog

WET SUMP
OIL PAN INSPECTION PLUG
Allows sanctioning bodies to conduct post-race OIL PUMPS
inspections of connecting rods without removing PART NO. APPLICATION DESCRIPTION
the oil pan.
22171 SBC Billet, High Volume, Fits 8-1/4” deep oil pans - Spur Gear
PART NO. DESCRIPTION 22163 BBC Billet, High Volume, Fits 8” deep oil pans - Spur Gear
22167 BBC Billet, High Volume, Fits 8” deep oil pans - Gerotor
23970 Oil Pan Inspection Plug
OIL PUMP / PICKUP

REAR SEAL COMBINATIONS
ADAPTERS • Pickup orientation ensures proper clearance
• Manufactured from billet aluminum • from pickup to bottom of any Moroso oil pan
Oil pump is not modified internally
• Includes fasteners
PART NO. DESCRIPTION
PART NO. DESCRIPTION
22124 Small Block Chevy, Moroso Part #22099 Std. Volume Pump, Fits: 8-1/4” Deep
38315 SBC, Use with new style oil pan (1986 & Newer blocks w/ 1-piece rear seal) 22134 Small Block Chevy, Moroso Part #22109 HV Pump, Fits: 8-1/4” Deep
38415 SBC, Use with old style oil pan (Pre-1980 blocks w/ driver-side dipstick) 22175 Big Block Chevy, Moroso Part #22149 Std. Volume Pump, Fits: 8” Deep
22185 Big Block Chevy, Moroso Part #22159 HV Pump, Fits: 8” Deep
22186 Big Block Chevy, Moroso Part #22159 HV Pump, Fits: 8” Deep - Offset Pickup
22187 Big Block Chevy, Moroso Part #22159 HV Pump, Fits: 8” Deep
- w/ Windage Shield
OIL PAN Small Block Chevy - High Volume Pump w/ 3/4” dia. inlet area and
SPACER KIT 22146 pickup for 8-1/4” deep oil pan
Small Block Chevy - High Volume Pump w/ 3/4” dia. inlet area and
PART NO. DESCRIPTION 22147 pickup for 7-1/8” deep oil pan. Fits #21312, 21313, 21318, & 21319

22934 Dart LS Next, Non-skirted engine block
ANTI-CAVITATION RACING
OIL PUMPS
Anti-cavitation slots are machined to bleed oil back to
the inlet side of the pump, and an enlarged bypass area
UNIVERSAL WINDAGE ensure a smooth flow rate throughout any RPM range.
TRAY SCREEN PART NO. DESCRIPTION
PART NO. DESCRIPTION
22101 SBC, Standard Volume
22111 SBC, High Volume
22912 Uni-Directional Windate Tray Screen, 23” x 16”, Universal Application
22150 BBC, Standard Volume
22160 BBC, High Volume
22162 BBC, Blueprinted High Volume - Parkerized™ coating

LOUVERED GM LS SERIES
WINDAGE TRAYS RACING OIL PUMP
• Volume will increase by 18% over stock oil pumps
PART NO. DESCRIPTION • Hard anodized coating for wear and performance
• Will fit with stock timing cover
23020 SBC and 400 block, with either driver or passenger side dipstick
23030 BBC Mark IV PART NO. DESCRIPTION
22941 LS Engine
22935 Ford 351W 22120 LS-1 - Fits: Gen III and Gen IV, 4.8L, 5.3L, 6.0L, 6.2L

MAIN CAP BAFFLES OIL PUMP DRIVE SHAFTS
Mounts between rear main bearing cap and oil PART NO. LENGTH APPLICATION DRIVE USE ON PUMPS
pump to prevent sump oil from reaching crank-
shaft during hard acceleration. 22070 5.985” SBC, Chevy V6 Blade 22101, 22111, 22124,
(Stock) 22134, 22171
PART NO. DESCRIPTION 22080 22150, 22160, 22144,
Blade
BBC, Stock Height
6.691”
22175, 22185, 22163
23000 Small Block and 90° V6 Chevy 22082 7.153” BBC, .400” raised Blade 22150, 22160, 22144,
23010 Big Block Chevy 22175, 22185, 22163
22074 9.136” BBC, .400” raised Hex 22167
321
