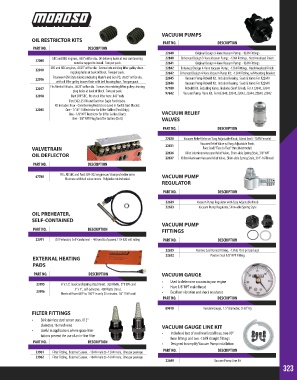

Page 323 - 2018 Master Catalog

VACUUM PUMPS
OIL RESTRICTOR KITS
PART NO. DESCRIPTION
PART NO. DESCRIPTION
22640 Original Design 3-Vane Vacuum Pump; -12AN Fittings
SBC and BBC engines, .060” orifice dia. Oil delivery holes at rear cam bearing 22840 Enhanced Design 3-Vane Vaccum Pump; -12AN Fittings, Hard Anodized Finish
22000
must be tapped to install. Two per pack. 22641 Original Design 4-Vane Vacuum Pump; -12AN Fittings
SBC and BBC engines, .0625” orifice dia. Screws into existing lifter galley clean- 22842 Enhanced Design 4-Vane Vacuum Pump; -12AN Fittings, Hard Anodized Finish
22010
ing plug holes at back of block. Two per pack. 22642 Enhanced Design 4-Vane Vacuum Pump Kit; -12AN Fitting, w/Mounting Bracket
22016 Fits newer GM-Style blocks (including Mark V and Gen VI), .0625” orifice dia. 22645 Vacuum Pump Rebuild Kit, Includes Bearing, Seals & Vanes For #22640
with oil lifter galley bosses flush with bell housing face. Two per pack. 22646 Vacuum Pump Rebuild Kit, Includes Bearing, Seals & Vanes For #22641
Fits Merlin II blocks, .0625” orifice dia. Screws into existing lifter galley cleaning
22017 97180 Rebuild Kit, Excluding Vanes, Includes Shaft & Hub, For # 22640, 22641
plug holes at back of block. Two per pack. 97642 Vacuum Pump, Vane Kit, For #22640, 22641, 22642, 22644, 22840, 22842
22018 Dart SHP SBC, fits stock lifter bore .843” only
Ford 302-351W and Dart Iron Eagle Ford blocks.
Kit includes: Four - Cam Bearing Restrictors (used in Ford & Dart Blocks);
22045 One - 7/16”-14 Restrictor for Lifter Gallies (Ford Only);
One - 1/8” NPT Restrictor for LIfter Gallies (Dart); VACUUM RELIEF
One - 1/8” NPT Plug for Lifter Gallies (Dart) VALVES
PART NO. DESCRIPTION

22630 Vacuum Relief Valve w/ Easy Adjustable Knob, Gland Seal (-12AN Female)
Vacuum Relief Valve w/ Easy Adjustable Knob,
22631
VALVETRAIN Face Seal (“Face to Face” thru sheetmetal)
Billet Aluminum Vacuum Relief Valve, Shim-able Spring Style, 3/8” NPT
OIL DEFLECTOR 22636 Billet Aluminum Vacuum Relief Valve, Shim-able Spring Style, 3/4”-16 Thread
22637
PART NO. DESCRIPTION
Fits: All SBC and Ford 289-302 engines w/ stamped rocker arms
67700 VACUUM PUMP
Must use with tall valve covers. Polylocks not included.
REGULATOR
PART NO. DESCRIPTION
22629 Vacuum Pump Regulator with Easy Adjustable Knob
22633 Vacuum Pump Regulator, Shim-able Spring Style
OIL PREHEATER,
SELF-CONTAINED
VACUUM PUMP
PART NO. DESCRIPTION FITTINGS

23991 Oil Preheater, Self-Contained - 400 watts of power, 110-120 volt rating PART NO. DESCRIPTION

22635 Positive Seal Vented Fitting, -12AN, One per package
22632 Positive Seal 1/8” NPT Fitting
EXTERNAL HEATING
PADS

PART NO. DESCRIPTION VACUUM GAUGE
• Used to determine vacuum in your engine
23995 6” x 12”, hook and spring attachment. 360 Watts. 8” 110V cord • Have 1/8” NPT male thread
5” x 7”, self-adhesive. 400 Watts (min.).
23996 • Excellent vibration and shock resistance
Heats oil from 66°F to 160°F in only 25 minutes. 36” 110V cord
PART NO. DESCRIPTION
89610 Vacuum Gauge, 1.5” Diameter, 0-30” Hg
FILTER FITTINGS
• 304 stainless steel screen uses .015”
diameter, 16 mesh wire VACUUM GAUGE LINE KIT
• Useful in applications where space limi-
tations prevent the use of an in-line filter • Includes 6 feet of steel reinforced hose, two 90°
hose fittings and two -12AN straight fittings
PART NO. DESCRIPTION • Designed to simplify Vacuum Pump installation
23961 Filter Fitting, External Screen, -12AN male to -12AN male, One per package PART NO. DESCRIPTION
23962 Filter Fitting, External Screen, -16AN male to -16AN male, One per package
22649 Vacuum Pump Line Kit
323
