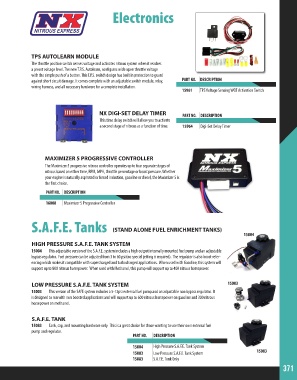

Page 371 - 2018 Master Catalog

Electronics

TPS AUTOLEARN MODULE
The throttle position switch senses voltage and activates nitrous system when it reaches
a preset voltage level. The new T.P.S. Autolearn, configures wide open throttle voltage
with the simple push of a button. This T.P.S. switch design has built in protection to guard
against short circuit damage. It comes complete with an adjustable switch module, relay, PART NO. DESCRIPTION
wiring harness, and all necessary hardware for a complete installation.
15961 TPS Voltage Sensing WOT Activation Switch

NX DIGI-SET DELAY TIMER PART NO. DESCRIPTION
This time delay switch will allow you to activate
a second stage of nitrous as a function of time. 15964 Digi-Set Delay Timer

MAXIMIZER 5 PROGRESSIVE CONTROLLER
The Maximizer 5 progressive nitrous controller operates up to four separate stages of
nitrous based on either time, RPM, MPH, throttle percentage or boost pressure. Whether
your engine is naturally aspirated or forced induction, gasoline or diesel, the Maximizer 5 is
the first choice.

PART NO. DESCRIPTION

16008 Maximizer 5 Progressive Controller

S.A.F.E. Tanks (STAND ALONE FUEL ENRICHMENT TANKS)
15004
HIGH PRESSURE S.A.F.E. TANK SYSTEM
15004 This adjustable version of the S.A.F.E. system includes a high output internally mounted fuel pump and an adjustable
bypass regulator. Fuel pressure can be adjusted from 3 to 60 psi (no special jetting is required). The regulator is also boost refer-
encing which makes it compatible with supercharged and turbocharged applications. When used with Gasoline, this system will
support up to 800 nitrous horsepower. When used with Methanol, this pump will support up to 400 nitrous horsepower.

LOW PRESSURE S.A.F.E. TANK SYSTEM 15003
15003 This version of the SAFE system includes a 5-12psi external fuel pump and an adjustable non bypass regulator. It
is designed to run with non boosted applications and will support up to 600 nitrous horsepower on gasoline and 300 nitrous
horsepower on methanol.

S.A.F.E. TANK
15083 Tank, cap, and mounting hardware only. This is a great choice for those wanting to use their own external fuel
pump and regulator.
PART NO. DESCRIPTION
15004 High Pressure S.A.F.E. Tank System
15003 Low Pressure S.A.F.E. Tank System 15083
15083 S.A.F.E. Tank Only
371
