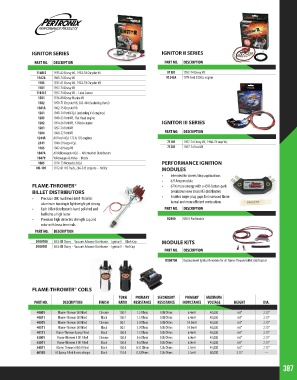

Page 387 - 2018 Master Catalog

IGNITOR SERIES IGNITOR II SERIES
PART NO. DESCRIPTION PART NO. DESCRIPTION

1168LS 1933-62 Chevy V6, 1933-34 Chrysler V6 91181 1957-74 Chevy V8
1162A 1963-74 Chevy V6 91243A 1974 Ford 2300cc engine
1183 1937-61 Chevy V8, 1932-33 Chrysler V8
1181 1957-74 Chevy V8
1181LS 1957-74 Chevy V8 - Lobe Sensor
1581 1976-88 Chevy Marine V8
1382 1959-71 Chrysler V8, 383-440 (including Hemi)
1381A 1962-75 Chrysler V8
1261 1949-74 Ford 6 Cyl. (excluding V-6 engines)
1283 1949-53 Ford V8, Flat Head engine
1282 1954-56 Ford V8, Y-Block engine IGNITOR III SERIES
1281 1957-74 Ford V8
1284 1960-72 Ford V8 PART NO. DESCRIPTION
1244A All Ford 4 Cyl. 172 & 192 engines
2541 1940-59 Jeep 4 Cyl. 71181 1957-74 Chevy V8, 1966-74 Jeep V8,
1165 1967-69 Jeep V6 71281 1957-74 Ford V8
1847A All Volkswagen 4 Cyl. - Aftermarket Distributors
1847V Volkswagen & Volvo - Bosch
1885 1970-73 Mercedes 8 Cyl. PERFORMANCE IGNITION
HO-181 1972-81 IHC Truck, 266-345 engines - Holley MODULES
• Intended for street /strip applications
• 6.9 Amp module
FLAME-THROWER® • 67% more energy with a 45% faster spark
BILLET DISTRIBUTORS breakdown over stock HEI distributors
• Precision CNC machined 6061-T6 billet • Enables larger plug gaps for increased flame
aluminum housing is lightweight yet strong kernal and more efficient combustion
• Each billet distributor is hand polished and PART NO. DESCRIPTION
buffed to a high luster
• Premium high dielectric strength cap and D2000 GM 4-Pin Module
rotor with brass terminals
PART NO. DESCRIPTION

D100700 SB & BB Chevy - Vacuum Advance Distributor - Ignitor II - Black Cap MODULE KITS
D100701 SB & BB Chevy - Vacuum Advance Distributor - Ignitor II - Red Cap
PART NO. DESCRIPTION
D500700 Replacement Ignitor II module for all Flame-Thrower billet distributors

FLAME-THROWER® COILS
TURN PRIMARY SECONDARY PRIMARY MAXIMUM
PART NO. DESCRIPTION FINISH RATIO RESISTANCE RESISTANCE INDUCTANCE VOLTAGE HEIGHT DIA.

40001 Flame-Thrower Oil Filled Chrome 100:1 1.5 Ohms 9.0k Ohms 6.4mH 40,000 6.0” 2.15”
40011 Flame-Thrower Oil Filled Black 100:1 1.5 Ohms 9.0k Ohms 6.4mH 40,000 6.0” 2.15”
40501 Flame-Thrower Oil Filled Chrome 80:1 3.0 Ohms 9.0k Ohms 10.0mH 40,000 6.0” 2.15”
40511 Flame-Thrower Oil Filled Black 80:1 3.0 Ohms 9.0k Ohms 10.0mH 40,000 6.0” 2.15”
40111 Flame-Thrower Epoxy Filled Black 100:1 1.5 Ohms 9.0k Ohms 6.4mH 40,000 6.0” 2.15”
45001 Flame-Thrower II Oil Filled Chrome 100:1 0.6 Ohms 9.0k Ohms 6.0mH 45,000 6.0” 2.15”
45011 Flame-Thrower II Oil Filled Black 100:1 0.6 Ohms 9.0k Ohms 6.0mH 45,000 6.0” 2.15”
44011 Flame-Thrower III Oil Filled Black 100:1 0.32 Ohms 7.0k Ohms 2.5mH 45,000 6.0” 2.15”
60103 HC Epoxy Filled E-core design Black 110:1 0.32Ohms 7.0k Ohms 2.5mH 60,000 3.15” ---

387
