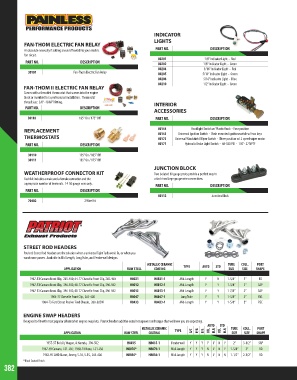

Page 382 - 2018 Master Catalog

INDICATOR
LIGHTS
FAN-THOM ELECTRIC FAN RELAY
An absolute necessity if adding an on/off switch to your electric PART NO. DESCRIPTION
fan circuit.
80201 1/8” Indicator Light - Red
PART NO. DESCRIPTION 80202 1/8” Indicator Light - Green
80204 5/16” Indicator Light - Red
30101 Fan-Thom Electric Fan Relay 80205 5/16” Indicator Light - Green
80206 5/16” Indicator Light - Blue
80210 1/2” Indicator Light - Green
FAN-THOM II ELECTRIC FAN RELAY
Comes with a threaded thermostat that screws into the engine
block or manifold for a professional installation. Thermostat
thread size: 3/8” -18 NPT fitting. INTERIOR
PART NO. DESCRIPTION
ACCESSORIES
30103 185° On / 175° Off PART NO. DESCRIPTION
Headlight Switch w/ Plastic Knob - Four position
REPLACEMENT 80154 Universal Ignition Switch - Dash mounted ignition switch w/ two keys
80153
THERMOSTATS 80173 Universal Windshield Wiper Switch - Three position w/ 2 speed wiper motor
PART NO. DESCRIPTION 80171 Hydraulic Brake Light Switch - 60-120 PSI - 1/8” - 27 NPTF
30110 195° On / 185° Off
30111 185° On / 175° Off
JUNCTION BLOCK
WEATHERPROOF CONNECTOR KIT Two isolated 10 gauge posts provide a perfect way to
Each kit includes a male and a female connector and the attach two large gauge wire connections.
appropriate number of terminals. 14-16 gauge wire only. PART NO. DESCRIPTION
PART NO. DESCRIPTION
80112 Junction Block
70402 2 Wire Kit

STREET ROD HEADERS
Patriot’s Street Rod Headers are the solution when a universal Tight Tuck won’t fit, or when you
want more power. Available in Mid Length, Long Tube, and Fenderwell designs.
METALLIC CERAMIC TUBE COLL. PORT
APPLICATION RAW STEEL COATING TYPE AUTO STD SIZE SIZE SHAPE

1967-81 Camaro Front Clip, 265-400; 64-77 Chevelle Front Clip, 265-400 H8021 H8021-1 Mid-Length Y N 1-5/8” 3” RD
1967-81 Camaro Front Clip, 396-502; 68-77 Chevelle Front Clip, 396-502 H8012 H8012-1 Mid-Length Y Y 1-3/4” 3” SAP
1967-81 Camaro Front Clip, 396-502; 68-77 Chevelle Front Clip, 396-502 H8013 H8013-1 Mid-Length Y Y 1-7/8” 3” SAP
1964-77 Chevelle Front Clip, 265-400 H8047 H8047-1 Long Tube Y Y 1-5/8” 3” OVL
1964-73 Ford Street Rod w/ Ford Chassis, 260-302W H8433 H8433-1 Mid-Length Y Y 1-5/8” 3” REC

ENGINE SWAP HEADERS
Designed to fit with most popular aftermarket engine swap kits. Patriot headers add the extra horsepower and torque that we know you are expecting.
AUTO STD
METALLIC CERAMIC TUBE COLL. PORT
APPLICATION RAW STEEL COATING TYPE A/C P/B P/S COL FLR COL FLR SIZE SIZE SHAPE

1955-57 Bel Air, Wagon, & Nomda, 396-502 H8035 H8035-1 Fenderwell Y Y Y Y Y N Y 2” 3-1/2” SAP
1967-69 Camaro, LS1-LS6; 1968-74 Nova, LS1-LS6 H8076* H8076-1 Mid-Length Y Y Y N Y N Y 1-5/8” 3” RD
1982-95 2WD Blazer, Jimmy, S-10, S-15, 265-400 H8036* H8036-1 Mid-Length Y Y Y N Y N N 1-1/2” 2-1/2” RD
*Black Coated Finish
382
