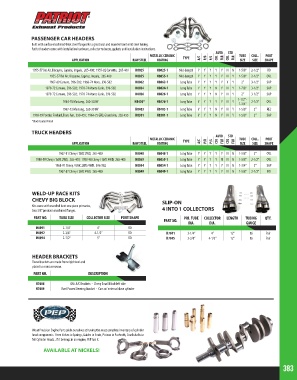

Page 383 - 2018 Master Catalog

PASSENGER CAR HEADERS
Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing.
Patriot headers come with installation hardware, collector reducers, gaskets and installation instructions.
AUTO STD
METALLIC CERAMIC TYPE TUBE COLL. PORT
APPLICATION RAW STEEL COATING A/C P/B P/S COL FLR COL FLR SIZE SIZE SHAPE

1955-57 Bel Air, Biscayne, Caprice, Impala, 265-400; 1955-82 Corvette, 265-400 H8025 H8025-1 Mid-Length Y Y Y Y Y N N 1-5/8” 2-1/2” RD
1955-57 Bel Air, Biscayne, Caprice, Impala, 265-400 H8055 H8055-1 Mid-Length Y Y Y Y Y N Y 1-5/8” 2-1/2” OVL
1967-69 Camaro, 396-502; 1968-74 Nova, 396-502 H8062 H8062-1 Long Tube Y Y Y Y Y Y Y 2” 3-1/2” SAP
1970-72 Camaro, 396-502; 1970-74 Monte Carlo, 396-502 H8024 H8024-1 Long Tube Y Y Y N Y N Y 1-7/8” 3-1/2” SAP
1970-72 Camaro, 396-502; 1970-74 Monte Carlo, 396-502 H8026 H8026-1 Long Tube Y Y Y N Y N Y 2” 3-1/2” SAP
1-1/2” -
1964-70 Mustang, 260-302W H8426* H8426-1 Long Tube Y Y Y Y Y N Y 2-1/2” OVL
1-3/4”
1967-73 Mustang, 260-351W H8403 H8403-1 Long Tube Y Y Y N Y N Y 1-5/8” 3” REC
1970-79 Pontiac Firebird, Trans Am, 350-455; 1964-75 GTO, Grand Am, 326-455 H8301 H8301-1 Long Tube Y Y Y N Y N Y 1-5/8” 3” SAP
*Black Coated Finish
TRUCK HEADERS
METALLIC CERAMIC AUTO STD TUBE COLL. PORT
APPLICATION RAW STEEL COATING TYPE A/C P/B P/S COL FLR COL FLR SIZE SIZE SHAPE

1967-91 Chevy / GMC 2WD, 265-400 H8048 H8048-1 Long Tube Y Y Y Y Y N N 1-5/8” 3” OVL
1988-99 Chevy / GMC 2WD, 265-400; 1988-98 Chevy / GMC 4WD, 265-400 H8059 H8059-1 Long Tube Y Y Y Y N N N 1-5/8” 2-1/2” OVL
1968-91 Chevy / GMC 2WD/4WD, 396-502 H8054 H8054-1 Long Tube Y Y Y Y Y N N 1-3/4” 3” SAP
1967-87 Chevy / GMC 4WD, 265-400 H8049 H8049-1 Long Tube Y Y Y Y Y N N 1-5/8” 2-1/2” RD

WELD-UP RACE KITS
CHEVY BIG BLOCK SLIP-ON
Kits come with mandrel bent one piece primaries,
two 3/8” precision machined flanges. 4 INTO 1 COLLECTORS
PART NO. TUBE SIZE COLLECTOR SIZE PORT SHAPE PRI. TUBE COLLECTOR LENGTH TUBING QTY.
PART NO.
DIA. DIA. GAUGE
H8091 2-1/4” 4” RD
H8092 2-3/8” 4-1/2” RD H7691 2-1/4” 4” 12” 16 Pair
H8094 2-1/2” 5” RD H7695 2-3/8” 4-1/2” 12” 16 Pair

HEADER BRACKETS
These brackets are made from rigid steel and
plated to resist corrosion.
PART NO. DESCRIPTION
H7608 GM A/C Brackets - Chevy Small Block left side
H7609 Ford Power Steering Bracket - Cars w/ external slave cylinder

We at Precision Engine Parts pride ourselves at having the most complete inventory of cylinder
head components. From Valves to Springs, Guides to Seats, Pistons to Pushrods, Crankshafts to
full Cylinder Heads...If it belongs in an engine, PEP has it.
AVAILABLE AT NICKELS!

383
