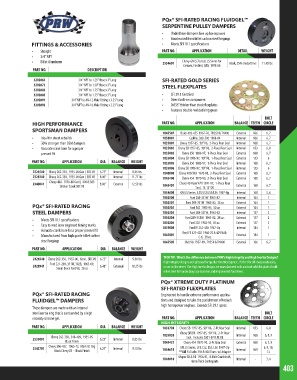

Page 403 - 2018 Master Catalog

PQx® SFI-RATED RACING FLUIDGEL™
SERPENTINE PULLEY DAMPERS
• UnderDrive dampers free up horsepower
• Constructed from billet carbon steel forgings
FITTINGS & ACCESSORIES • Meets SFI 18.1 specifications
• Straight PART NO. APPLICATION DETAIL WEIGHT
• 3/4” NPT
• Billet Aluminum 2534601 Chevy-GM 5.7L/6.0L LS Series for Black, 25% UnderDrive 11.40 lbs
Camaro, Firebird, GTO, 1998-06
PART NO. DESCRIPTION

5292063 3/4” NPT to 1.25” Hose x 3” Long SFI-RATED GOLD SERIES
5292073 3/4” NPT to 1.50” Hose x 3” Long STEEL FLEXPLATES
5292083 3/4” NPT to 1.75” Hose x 3” Long
5292085 3/4” NPT to 1.75” Hose x 5” Long • SFI 29.1 Certified
5292091 3/4” NPT to AN-12 Male Fitting x 3.25” Long • Direct bolt-on component
5292092 3/4” NPT to AN-16 Male Fitting x 2.25” Long • 0.035” thicker than stock flexplates
• Features double-welded ring gears
BOLT
HIGH PERFORMANCE PART NO. APPLICATION BALANCE TEETH CIRCLE
SPORTSMAN DAMPERS
1845507 Buick 403-455 1967-76, TH350 & TH400 External 166 6, 7
• Ideal for street rebuilds 1850001 Cadillac 368-500 1968-84 Internal 166 6, 7
• 30% stronger than OEM dampers 1835001 Chevy 1957-85, 90° V6, 2-Piece Rear Seal Internal 168 6, 7
• Accurate crank bore for a proper 1835002 Chevy SB 1957-85, 90° V6, 2-Piece Rear Seal Internal 153 6, 8
pressed fit 1835003 Chevy 350 1986-97, 1-Piece Rear Seal External 168 6, 7
1835004 Chevy SB 1986-97, 90° V6, 1-Piece Rear Seal External 153 6
PART NO. APPLICATION DIA BALANCE WEIGHT 1835005 Chevy 350 1986-97, 1-Piece Rear Seal Internal 168 6, 7
1835006 Chevy SB 1986-97, 90° V6, 1-Piece Rear Seal Internal 153 6
2326540 Chevy 262-350, 1955-00 Gen I, SBC V8 6.75” Internal 8.46 lbs 1840000 Chevy 400/383 1970-80, 2-Piece Rear Seal External 168 6, 7
2328340 Chevy 262-350, 1955-00 Gen I, SBC V8 8.00” Internal 11.77 lbs 1845400 Chevy 454 1970-90, 2-Piece Rear Seal External 168 6, 7
Chevy 400, 1970-80 Gen I, 400 & 383
2340041 8.00” External 12.59 lbs Chevy 454 Gen V/VI 1991-97, 1-Piece Rear
Stroker Crank SBC V8 1845401 Seal, 14.13” OD External 168 6, 7
1834600 GM LS Series, LS1/LS2/LS3/LS6 1997-Up Internal 168 5, 6
1830200 Ford 289-351W 1963-82 Internal 164 1
1830201 Ford 289-351W 1963-82, 28 oz External 164 1
PQx® SFI-RATED RACING 1830202 Ford 302 1982-95, 50 oz External 164 1
STEEL DAMPERS 1830203 Ford 289-351W, 1963-82 Internal 157 2
• Meets SFI 18.1 specifications 1830204 Ford 289-351W, 1963-82, 28 oz. External 157 2
• Easy to read laser engraved timing marks 1830205 Ford 302 1982-95, 50 oz. External 157 2
Ford FE 352-428 1957-Up
• Accurate crank bore for a proper pressed fit 1839000 Ford FE 427-428 1966-70 & 429/460, Internal 184 1
• Manufactured from high grade billet carbon 1842801 C-6, 28 oz. External 184 1
steel forgings 1845505 Olds V8 1957-90, TH350 & TH400 External 166 6, 7
PART NO. APPLICATION DIA BALANCE WEIGHT

2426540 Chevy 262-350, 1955-00, Gen I, SBC V8 6.75” Internal 9.30 lbs TECH TIP: What’s the difference between PRW’s High Integrity and High Inertia Designs?
Ford 221-289, 351W, 302B, 1963-69, High Integrity designs are lightened for quicker throttle response. Perfect for off-road, road racing
2428941 6.40” External 10.25 lbs or use on the street. The High Inertia designs are manufactured with a robust solid flat plate of cold-
Small Block Ford V8, 28 oz
rolled steel for harder drag race launches and improved 60-foot times.
PQx® XTREME DUTY PLATINUM
SFI-RATED FLEXPLATES
PQx® SFI-RATED RACING Engineered to handle extreme performance applica-
FLUIDGEL™ DAMPERS tions and designed to take the punishment of today’s
high horsepower engines. Exceeds SFI 29.1 specs.
These dampers are made with an internal
steel inertia ring that is surrounded by a high BOLT
viscosity silicone gel. PART NO. APPLICATION BALANCE TEETH CIRCLE
HIGH INTEGRITY
PART NO. APPLICATION DIA BALANCE WEIGHT 1832730 Chevy SB 1957-85, 90° V6, 2-Pc Rear Seal Internal 153 6, 8
Chevy SB/BB 1957-85, 90° V6, 2-Pc Rear Internal 168 6, 8, 9
1835030
2535001 Chevy 262-350, 348-409, 1955-95 6.25” Internal 8.85 lbs Seal, Includes 2001-07 8.1L BB
Black Finish 1845431 Chevy 454 1970-90, 2-Pc Rear Seal External 168 6, 7, 8
Chevy 396-427, 1965-72, Mark IV, Big
2542701 6.25” Internal 9.10 lbs 1834610 GM LS Series, LS1, LS2, LS3, LS6 1997-Up Internal 168 6, 9, 10,
Block Chevy V8 - Black Finish **Will Fit Turbo 350 & 400 Trans. w/ Adapter 12
Mopar SB & BB 1956-91, 8-Bolt Crankshaft,
1844010 Internal - 3, 4
4mm Thick Centerplate
403
