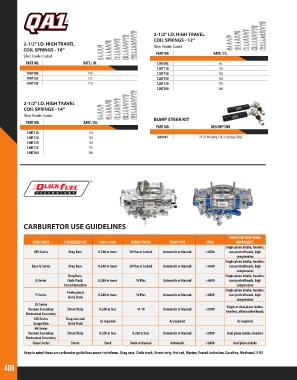

Page 406 - 2018 Master Catalog

2-1/2” I.D. HIGH TRAVEL
COIL SPRINGS - 12”
2-1/2” I.D. HIGH TRAVEL Silver Powder Coated.
COIL SPRINGS - 10”
Silver Powder Coated. PART NO. RATE / IN.
PART NO. RATE / IN. 12HT095 95
12HT110 110
10HT100 100 12HT130 130
10HT125 125 12HT150 150
10HT150 150 12HT170 170
12HT200 200

2-1/2” I.D. HIGH TRAVEL
COIL SPRINGS - 14”
Silver Powder Coated. BUMP STEER KIT
PART NO. RATE / IN.
PART NO. DESCRIPTION
14HT110 110
14HT130 130 BAX102 79-93 Mustang 5.0L including Cobra
14HT150 150
14HT175 175
14HT200 200

CARBURETOR USE GUIDELINES

SUGGESTED ADDITIONAL
CARB SERIES ENGINEERED USE CAM @ 0.050 INITIAL TIMING TRANS TYPE STALL COMPONENTS
Single plane intake, headers,
QFX-Series Drag Race 0.260 or more 20 Plus or Locked Automatic or Manual >4500 race ported heads, high
compression
Single plane intake, headers,
Race-Q-Series Drag Race 0.240 or more 20 Plus or Locked Automatic or Manual >4500 race ported heads, high
compression
Drag Race, Single plane intake, headers,
Q-Series Circle Track, 0.240 or more 18 Plus Automatic or Manual >4000 race ported heads, high
Forced Induction compression
Single plane intake, headers,
Professional
P-Series 0.240 or more 18 Plus Automatic or Manual >4000 race ported heads, high
Circle Track
compression
SS-Series
Single or dual plane intake,
Vacuum Secondary Street/Strip 0.240 or less 14-18 Automatic or Manual <3500 headers, aftermarket heads
Mechanical Secondary
SSR-Series Drag race and As required As required As required
Gauge Rule Circle Track
HR-Series
Vacuum Secondary Street/Strip 0.220 or less 0.220 or less Automatic or Manual <2000 Dual plane intake, headers
Mechanical Secondary
Slayer Series Street Stock Stock or Manual Automatic <2000 Dual plane intake
Keep in mind these are carburetor guidelines meant to inform. Drag race, Circle track, Street strip, Hot rod, Marine, Forced induction, Gasoline, Methanol, E-85

406
