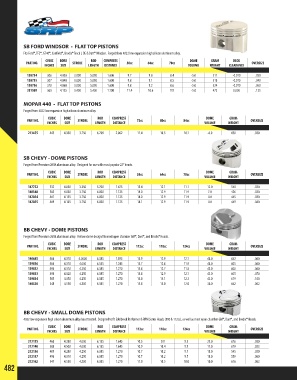

Page 482 - 2018 Master Catalog

SB FORD WINDSOR - FLAT TOP PISTONS
Fits Ford®, TFS®, GT40®, Canfield®, Brodix® Track I, OE & Dart® Windsor. Forged from 4032 low expansion high silicon aluminum alloy.
CUBIC BORE ROD COMPRESS DOME GRAM DECK
PART NO. STROKE 58cc 64cc 70cc OVERSIZE
INCHES SIZE LENGTH DISTANCE VOLUME WEIGHT CLEARANCE
138734 306 4.030 3.000 5.090 1.600 9.7 9.0 8.4 -5.0 511 -0.010 .030
138735 307 4.040 3.000 5.090 1.600 9.8 9.1 8.5 -5.0 518 -0.010 .040
138736 310 4.060 3.000 5.090 1.600 9.8 9.2 8.6 -5.0 524 -0.010 .060
231589 363 4.125 3.400 5.400 1.100 11.4 10.6 9.9 -5.0 472 0.000 .125

MOPAR 440 - FLAT TOP PISTONS
Forged from 4032 low expansion high silicon aluminum alloy.
CUBIC BORE ROD COMPRESS DOME GRAM
PART NO. STROKE 72cc 80cc 84cc OVERSIZE
INCHES SIZE LENGTH DISTANCE VOLUME WEIGHT
213455 445 4.350 3.750 6.768 2.062 11.4 10.5 10.1 -6.0 690 .030

SB CHEVY - DOME PISTONS
Forged from Premium 2618 aluminum alloy. Designed for use with most popular 23° heads.
CUBIC BORE ROD COMPRESS DOME GRAM
PART NO. STROKE 58cc 64cc 70cc OVERSIZE
INCHES SIZE LENGTH DISTANCE VOLUME WEIGHT
147752 332 4.030 3.250 5.700 1.675 13.4 12.1 11.1 12.0 540 .030
140348 383 4.030 3.750 6.000 1.125 14.0 12.9 11.9 7.0 426 .030
142024 407 4.155 3.750 6.000 1.125 14.0 12.9 11.9 4.0 445 .030
142025 409 4.165 3.750 6.000 1.125 14.1 12.9 11.9 4.0 449 .040

BB CHEVY - DOME PISTONS
Forged from Premium 2618 aluminum alloy. Hollow dome design fits most open chamber GM®, Dart®, and Brodix® Heads.
CUBIC BORE ROD COMPRESS DOME GRAM
PART NO. STROKE 112cc 118cc 124cc OVERSIZE
INCHES SIZE LENGTH DISTANCE VOLUME WEIGHT
140685 466 4.310 4.0000 6.385 1.395 13.9 12.9 12.1 48.0 642 .060
139836 466 4.310 4.000 6.535 1.245 13.7 12.8 11.9 48.0 605 .060
139832 496 4.310 4.250 6.385 1.270 13.8 12.7 11.8 43.0 600 .060
139833 498 4.320 4.250 6.385 1.270 13.8 12.9 12.1 43.0 605 .070
139834 505 4.350 4.250 6.385 1.270 14.0 13.1 12.3 43.0 619 .100
140330 548 4.530 4.250 6.385 1.270 13.8 13.0 12.0 36.0 642 .062

BB CHEVY - SMALL DOME PISTONS
4032 low expansion high silicon aluminum alloy heat treated. Designed to fit Edelbrock Performer & RPM Series Heads (110 & 112cc), as well as most open chamber GM®, Dart®, and Brodix® Heads.
CUBIC BORE ROD COMPRESS DOME GRAM
PART NO. STROKE 112cc 118cc 124cc OVERSIZE
INCHES SIZE LENGTH DISTANCE VOLUME WEIGHT
212135 460 4.280 4.000 6.135 1.645 10.5 9.9 9.5 23.0 616 .030
212140 508 4.500 4.000 6.135 1.645 10.9 10.4 9.9 17.0 679 .032
212156 489 4.280 4.250 6.385 1.270 10.7 10.2 9.7 18.0 545 .030
212157 496 4.310 4.250 6.385 1.270 10.7 10.2 9.7 18.0 559 .060
212162 547 4.530 4.250 6.385 1.270 11.0 10.5 10.0 10.0 616 .062
482
