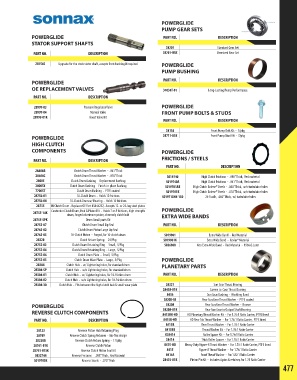

Page 477 - 2018 Master Catalog

POWERGLIDE
PUMP GEAR SETS
POWERGLIDE PART NO. DESCRIPTION
STATOR SUPPORT SHAFTS
28201 Standard Gear Set
PART NO. DESCRIPTION 28201-OSK Oversized Gear Set

28154S Upgrade for the stock stator shaft, accepts front bushing if required POWERGLIDE
PUMP BUSHING
POWERGLIDE PART NO. DESCRIPTION
OE REPLACEMENT VALVES 34034T-01 Long-Lasting Pump Performance
PART NO. DESCRIPTION

28999-03 Pressure Regulator Valve POWERGLIDE
28999-04 Manual Valve FRONT PUMP BOLTS & STUDS
28999-01K Boost Valve Kit
PART NO. DESCRIPTION
28136 Front Pump Bolt Kit - 7/pkg
POWERGLIDE 28711-03K Front Pump Stud Kit - 7/pkg
HIGH CLUTCH
COMPONENTS POWERGLIDE
FRICTIONS / STEELS
PART NO. DESCRIPTION
PART NO. DESCRIPTION
28406B Clutch Drum Thrust Washer - .061” Thick
28406C Clutch Drum Thrust Washer - .078” Thick S019740 High Clutch Frictions - .098” Thick, Red material
28005 Clutch Drum Bushing - Replacement Bushing S019740A High Clutch Frictions - .061” Thick, Red material
28005X Clutch Drum Bushing - Finish-in-place Bushing S019701AK High Clutch Kolene® Steels - .060” Thick, w/o turbulator holes
77005T Clutch Drum Bushing - PTFE coated S019701K High Clutch Kolene® Steels - .070” Thick, w/o turbulator holes
28756-01 10-Clutch Drum - Holds 10 frictions S019715HK-150 24-Tooth, .060” Thick, w/ turbulator holes
28756-08 10-Clutch Drum w/ Bearing - Holds 10 frictions
28755 Hi Clutch Drum - Replaces OE Part #3844252, Accepts 12- or 24-lug steel plates
28755-14K Contender Clutch Drum, Hub & Piston Kit - Holds 7 or 8 frictions, high strength POWERGLIDE
drum, forged aluminum piston, chromoly clutch hub
EXTRA WIDE BANDS
28755-SPK Drum Small parts Kit
28755-07 Clutch Drum Small Lip Seal PART NO. DESCRIPTION
28765-02 Clutch Drum Piston Large Lip Seal
28765-05 10-Clutch Piston - Forged, for 10-clutch drum S019961 Extra Wide Band - Red Material
28320 Clutch Return Spring - 24/Pkg S019961K Extra Wide Band - Kevlar® Material
28755-03 Clutch Drum Retaining Ring - Small, 5/Pkg S026968 Alto Extra Wide Band - Red Material - 1966 & Later
28755-04 Clutch Drum Retaining Ring - Large, 5/Pkg
28755-06 Clutch Drum Plate - Small, 5/Pkg
28755-05 Clutch Drum Wear Plate - Large, 5/Pkg POWERGLIDE
28304 Clutch Hub - w/ Lightening holes, for standard drum PLANETARY PARTS
28304-SP Clutch Hub - w/o Lightening holes, for standard drum
28304-01 Clutch Hub - w/ Lightening holes, for 10-friction drum PART NO. DESCRIPTION
28304-02 Clutch Hub - w/o Lightening holes, for 10-friction drum
28304-30 Clutch Hub - Fits between the high clutch hub & small wear plate 28321 Sun Gear Thrust Bearing
28438-01K Carrier-to-Case Thrust Bearing
8436 Sun Gear Bushing - Wedding Band
38208-03 Rear Sun Gear Thrust Washer - PTFE coated
POWERGLIDE 38208 Rear Sun Gear Thrust Washer - Bronze
Rear Sun Gear to Output Shaft Bearing
38208-01K
REVERSE CLUTCH COMPONENTS 8415BK-HD HD Planetary Thrust Washer Kit - For 1.76:1 Ratio Carrier, PTFE lined
PART NO. DESCRIPTION 8415B-HD HD Rear Tab Thrust Washer - For 1.76:1 Ratio Carrier, PTFE lined
8415B Rear Thrust Washer - For 1.76:1 Ratio Carrier
28123 Reverse Piston Hub Retaining Plug 8415BK Thrust Washer Kit - For 1.76:1 Ratio Carrier
28709 Reverse Clutch Spring Retainer - No-flex design K28414 Roller Spacer Kit - For 1.76:1 Ratio Carrier
28320A Reverse Clutch Return Spring - 17/pkg 28414 Thick Roller Spacer - For 1.76:1 Ratio Carrier
28761-01K Reverse Clutch Piston 8415-HD Heavy Duty Figure-8 Thrust Washer - For 1.76:1 Ratio Carrier, PTFE lined
28761-01SK Reverse Clutch Piston Seal Kit 8415 Figure-8 Thrust Washer - For 1.76:1 Ratio Carrier
S032744 Reverse Frictions - .098” Thick, Red Material 8415A Front Thrust Washer - For 1.82:1 Ratio Carrier
S019703K Reverse Steels - .070” Thick 28435-01K Pinion Pin Kit - Includes 6 pins & retainer, for 1.76 Ratio Carrier
477
