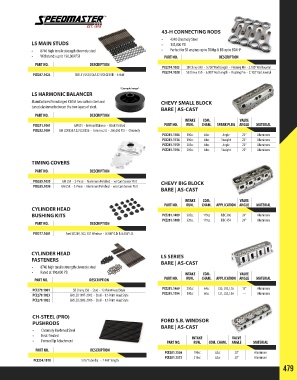

Page 479 - 2018 Master Catalog

43-H CONNECTING RODS
• 4340 Chromoly Steel
LS MAIN STUDS • 145,000 PSI
• 8740 high tensile strength chromoly steel • Perfect for SB engines up to 700hp & BB up to 850 HP
• Withstands up to 190,000 PSI PART NO. DESCRIPTION
PART NO. DESCRIPTION
PCE274.1023 SB Chevy 350 - 5.700” Rod Length - Floating Pin - 2.100” Rod Journal
PCE274.1028 SB Chevy 350 - 6.000” Rod Length - Floating Pin - 2.100” Rod Journal
PCE287.1024 GM LS1/LS2/LS6/LS7/LSX GEN III - 4-Bolt

*Example Image*
LS HARMONIC BALANCER

Manufactured from forged K1045 low carbon steel and CHEVY SMALL BLOCK
tuned elastomer between the two layers of steel.
BARE | AS-CAST
PART NO. DESCRIPTION
INTAKE COM. VALVE
PCE291.1061 GM LS1 - Internal Balance - Black Painted PART NO. RUN. CHAM. SPARK PLUG ANGLE MATERIAL
PCE292.1004 GM LSX/LS1/LS2/LS3/LS6 - 16mm x 2.0 - 200,000 PSI - Chromoly
PCE281.1106 190cc 64cc Angle 23° Aluminum
PCE281.1136 190cc 64cc Straight 23° Aluminum
PCE281.1159 205cc 64cc Angle 23° Aluminum
PCE281.1196 205cc 64cc Straight 23° Aluminum

TIMING COVERS
PART NO. DESCRIPTION

PCE265.1035 GM LSX - 2-Piece - Aluminum Polished - w/ Cam Sensor Port CHEVY BIG BLOCK
PCE265.1036 GM LSX - 2-Piece - Aluminum Polished - w/o Cam Sensor Port
BARE | AS-CAST

INTAKE COM. VALVE
PART NO. RUN. CHAM. APPLICATION ANGLE MATERIAL
CYLINDER HEAD
BUSHING KITS PCE281.1489 305cc 119cc BBC 396 24° Aluminum
PCE281.1488 320cc 119cc BBC 454 24° Aluminum
PART NO. DESCRIPTION

PCE277.1001 Ford SB 289, 302, 351 Windsor - 0.500” O.D. & 0.438” I.D.

CYLINDER HEAD LS SERIES
FASTENERS BARE | AS-CAST
• 8740 high tensile strength chromoly steel
• Rated at 190,000 PSI INTAKE COM. VALVE
PART NO. DESCRIPTION PART NO. RUN. CHAM. APPLICATION ANGLE MATERIAL

PCE279.1001 SB Chevy 350 - Stud - 12-Point Head Style PCE281.1469 250cc 64cc LS3, L92, L76 15° Aluminum
PCE279.1023 GM LSX 1997-2002 - Stud - 12-Point Head Style PCE281.1794 198cc 60cc LS1, LS2, LS6 --- Aluminum
PCE279.1022 GM LSX 2002-2006 - Stud - 12-Point Head Style

CH-STEEL (PRO)
PUSHRODS FORD S.B. WINDSOR
• Chromoly Hardened Steel BARE | AS-CAST
• Heat-Treated INTAKE VALVE
• Formed Tip Attachment PART NO. RUN. COM. CHAM. ANGLE MATERIAL
PART NO. DESCRIPTION
PCE281.1556 190cc 62cc 20° Aluminum
PCE281.1573 210cc 62cc 20° Aluminum
PCE254.1018 5/16” Tube dia. - 7.400” length
479
