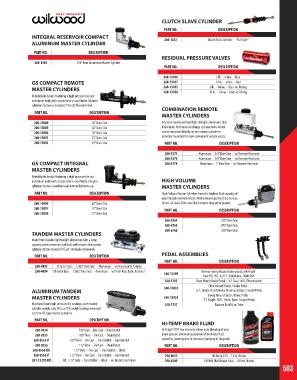

Page 503 - 2018 Master Catalog

CLUTCH SLAVE CYLINDER
PART NO. DESCRIPTION
INTEGRAL RESERVOIR COMPACT 260-1333 Clutch Slave Cylinder - “Pull Type”
ALUMINUM MASTER CYLINDER

PART NO. DESCRIPTION
RESIDUAL PRESSURE VALVES
260-1304 .750” Bore Aluminum Master Cylinder
PART NO. DESCRIPTION
260-13706 2 lb. - Inline - Blue
GS COMPACT REMOTE 260-13707 10 lb. - Inline - Red
MASTER CYLINDERS 260-13783 2 lb. - Inline - Blue w/ Fitting
260-13784 10 lb. - Inline - Red w/ Fitting
Rebuildable design featuring a high pressure die cast
aluminum body with a protective e-coat finish. Remote
cylinders feature a standard 7/16-20 threaded inlet.
COMBINATION REMOTE
PART NO. DESCRIPTION
MASTER CYLINDERS
260-15088 .50” Bore Size Precision machined from high strength aluminum, this
260-15089 .62” Bore Size kit includes both small and large size reservoirs which
260-15090 .70” Bore Size can be mounted directly on the master cylinder or
260-15091 .75” Bore Size remotely mounted for more convenient service access.
260-15092 .81” Bore Size PART NO. DESCRIPTION

260-3374 Aluminum - 3/4” Bore Size - w/ Remote Reservoir
260-3376 Aluminum - 7/8” Bore Size - w/ Remote Reservoir
GS COMPACT INTEGRAL 260-3378 Aluminum - 1” Bore Size - w/ Remote Reservoir
MASTER CYLINDERS
Rebuildable design featuring a high pressure die cast
aluminum body with a protective e-coat finish. Integral HIGH VOLUME
cylinders feature a positive seal internal bellows cap. MASTER CYLINDERS
PART NO. DESCRIPTION High-Volume Master Cylinders have the highest fluid capacity of
any integral reservoir design. With a total capacity of 8.2 ounces,
260-15096 .62” Bore Size there is at least 26% more fluid volume than other brands.
260-15097 .70” Bore Size PART NO. DESCRIPTION
260-15098 .75” Bore Size
260-6764 .750” Bore Size
260-6765 .875” Bore Size
260-6766 1.00” Bore Size
TANDEM MASTER CYLINDERS
Made from durable lightweight aluminum with a large
capacity plastic reservoir and dual outlet bores, this master
cylinder utilizes standard O.E.M. internal components.
PART NO. DESCRIPTION PEDAL ASSEMBLIES
PART NO. DESCRIPTION
260-4893 Chrysler Type - 1.062” Bore Size - Aluminum - w/ Reservoir & Fittings
260-4894 Chrysler Type - 1.062” Bore Size - Aluminum - w/ Push Rod, Boot, Retainer Reverse Swing Mount Brake and Clutch Pedal -
340-11299
Rear MT, HD, 6.25:1 Adjustable, Triple M/C
340-1285 Floor Mount Brake Pedal - 6:1 Dual, M/C (Obsolescent)
Floor Mount Clutch / Brake Pedal -
340-13833
ALUMINUM TANDEM 6:1, Single Clutch/Brake Aluminum Base, Forged Pedal
Swing Mount Clutch / Brake Pedal -
MASTER CYLINDERS 340-13834 7:1 Single, M/C, Alum. Base, Forged Pedal
Machined from high-pressure die castings, each master 340-1757 Balance Bar Kit, w/ Tube
cylinder weighs only 3lbs, a 75% weight savings over most
cast iron OE type master cylinders.
PART NO. DESCRIPTION
HI-TEMP BRAKE FLUID
260-9439 7/8” Bore - Die Cast - Dual Outlet Hi-Temp° 570’s low viscosity allows easy bleeding of your
260-8555 1.00” Bore - Die Cast - Dual Outlet brake system, eliminating aeration of the brake fluid
260-8555-P 1.00” Bore - Die Cast - Dual Outlet - Ball Burnish caused by foaming due to excessive pumping of the pedal.
260-8556 1.12” Bore - Die Cast - Dual Outlet PART NO. DESCRIPTION
260-8556-BK 1.12” Bore - Die Cast - Dual Outlet - Black
260-8556-P 1.12” Bore - Die Cast - Dual Outlet - Ball Burnish 290-0632 Hi-Temp 570 - 12 oz. Bottle
261-13270-BK Kit: 1.12” Bore - Dual Outlet - Black - w/ Bracket and Valve 290-6209 EXP600 PLUS Brake Fluid - 500 ml. Bottle
503
