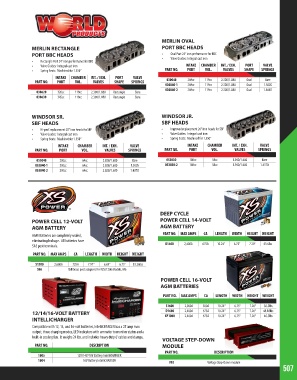

Page 507 - 2018 Master Catalog

MERLIN OVAL
MERLIN RECTANGLE PORT BBC HEADS
PORT BBC HEADS • Oval Port 24° iron performance for BBC
• Rectangle Port 24° iron performance for BBC • Valve Guides: Integral cast iron
• Valve Guides: Integral cast iron INTAKE CHAMBER INT. / EXH. PORT VALVE
• Spring Seats: Machined for 1.550” PART NO. PORT VOL. VALVES SHAPE SPRINGS
INTAKE CHAMBER INT. / EXH. PORT VALVE
PART NO. PORT VOL. VALVES SHAPE SPRINGS 030040 269cc 119cc 2.300/1.880 Oval Bare
030040-1 269cc 119cc 2.300/1.880 Oval 1.500S
030040-2 269cc 119cc 2.300/1.880 Oval 1.460D
030620 320cc 119cc 2.300/1.880 Rectangle Bare
030630 345cc 119cc 2.300/1.880 Rectangle Bare

WINDSOR SR. WINDSOR JR.
SBF HEADS SBF HEADS
• Hi-perf. replacement 20° iron heads for SBF • Improved replacement 20° iron heads for SBF
• Valve Guides: Integral cast iron • Valve Guides: Integral cast iron
• Spring Seats: Machined for 1.550” • Spring Seats: Machined for 1.550”
INTAKE CHAMBER INT. / EXH. VALVE INTAKE CHAMBER INT. / EXH. VALVE
PART NO. PORT VOL. VALVES SPRINGS PART NO. PORT VOL. VALVES SPRINGS

053040 200cc 64cc 2.020/1.600 Bare 053030 180cc 58cc 1.940/1.600 Bare
053040-1 200cc 64cc 2.020/1.600 1.500S 053030-2 180cc 58cc 1.940/1.600 1.437D
053040-2 200cc 64cc 2.020/1.600 1.437D

DEEP CYCLE
POWER CELL 12-VOLT POWER CELL 14-VOLT
AGM BATTERY AGM BATTERY
AGM Batteries are completely sealed, PART NO. MAX AMPS CA LENGTH WIDTH HEIGHT WEIGHT
eliminating leakage. All batteries have
SAE post terminals. D1400 2,400A 675A 10.24” 6.75” 7.20” 43.6lbs
PART NO. MAX AMPS CA LENGTH WIDTH HEIGHT WEIGHT
S1200 2,600A 725A 7.97” 6.69” 6.75” 33.26lbs
586 Tall brass post adapters for 925/1200 Models, M6
POWER CELL 16-VOLT
AGM BATTERIES
PART NO. MAX AMPS CA LENGTH WIDTH HEIGHT WEIGHT

S1600 2,000A 500A 10.24” 6.75” 7.20” 30.5lbs
D1600
12/14/16-VOLT BATTERY XP1000 2,400A 675A 10.24” 6.75” 7.20” 48.18lbs
10.24”
675A
2,400A
6.75”
46.5lbs
7.20”
INTELLICHARGER
Compatible with 12, 14, and 16-volt batteries, IntelliCHARGER has a 25 amp max
output, three charging modes, LED indicators with ammeter to monitor status and a
built-in cooling fan. It weighs 24 lbs. and includes heavy duty 6’ cables and clamps.
VOLTAGE STEP-DOWN
PART NO. DESCRIPTION MODULE
PART NO. DESCRIPTION
1005 12V/14V/16V Battery IntelliCHARGER
1004 16V Battery IntelliCHARGER 993 Voltage Step-Down module
507
