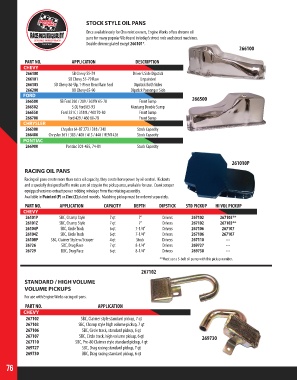

Page 76 - 2018 Master Catalog
P. 76
STOCK STYLE OIL PANS
Once available only for Chevrolet owners, Engine Works offers chrome oil
pans for many popular V8s found in today’s street rods and street machines.
Double chrome plated except 266101*.
266100
PART NO. APPLICATION DESCRIPTION
CHEVY
266100 SB Chevy 55-79 Driver’s Side Dipstick
266101 SB Chevy 55-79 Raw Unpainted
266105 SB Chevy 86-Up, 1-Piece Rear Main Seal Dipstick Both Sides
266200 BB Chevy 65-90 Dipstick Passenger Side
FORD
266500 SB Ford 260 / 289 / 302W 65-78 Front Sump 266500
266502 5.0L Ford 83-93 Mustang Double Sump
266550 Ford 351C / 351M / 400 70-80 Front Sump
266700 Ford 429 / 460 68-78 Front Sump
CHRYSLER
266300 Chrysler 64-87 273 / 318 / 340 Stock Capacity
266400 Chrysler 361 / 383 / 400 / 413 / 440 / HEMI 426 Stock Capacity
PONTIAC
266900 Pontiac 301-455, 74-81 Stock Capacity
261010P
RACING OIL PANS
Racing oil pans create more than extra oil capacity, they create horsepower by oil control. Kickouts
and a specially designed baffle make sure oil stays in the pickup area, available for use. Crank scraper
equipped versions extract power robbing windage from the rotating assembly.
Available in Painted (P) or Zinc (Z) plated models. Matching pickup must be ordered separately.
PART NO. APPLICATION CAPACITY DEPTH DIPSTICK STD PICKUP HI VOL PICKUP
CHEVY
26101P SBC, Champ Style 7 qt 7” Drivers 267102 267103**
26101Z SBC, Champ Style 7 qt 7” Drivers 267102 267103**
26104P SBC, Circle Track 6 qt 7-1/4” Drivers 267106 267107
26104Z SBC, Circle Track 6 qt 7-1/4” Drivers 267106 267107
26108P SBC, Claimer Style w/Scraper 4 qt Stock Drivers 267110 ---
26726 SBC, Drag Race 7 qt 8-1/4” Drivers 269727 ---
26729 BBC, Drag Race 6 qt 8-1/4” Drivers 269730 ---
**Must use a 5-bolt oil pump with this pickup number.
267102
STANDARD / HIGH VOLUME
VOLUME PICKUPS
For use with Engine Works racing oil pans.
PART NO. APPLICATION
CHEVY
267102 SBC, Claimer style standard pickup, 7 qt
267103 SBC, Champ style high volume pickup, 7 qt
267106 SBC, Circle track, standard pickup, 6 qt
267107 SBC, Circle track, high volume pickup, 6 qt 269730
267110 SBC, Pre-80 Claimer style standard pickup, 4 qt
269727 SBC, Drag racing standard pickup, 7 qt
269730 BBC, Drag racing standard pickup, 6 qt
76
