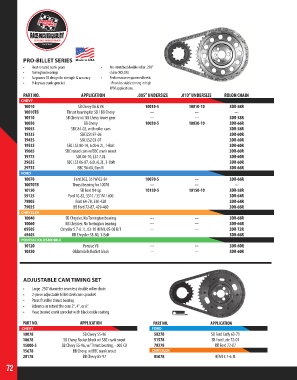

Page 72 - 2018 Master Catalog

PRO-BILLET SERIES
• Heat-treated crank gears • Pre-stretched double roller .250”
• Torrington bearings chain (ROLON)
• Surpasses OE design for strength & accuracy • Performance engineered teeth
• 9-keyway crank sprocket - Provides stable timing in high
RPM applications.
PART NO. APPLICATION .005” UNDERSIZE .010” UNDERSIZE ROLON CHAIN
CHEVY
10010 SB Chevy V6 & V8 10010-5 10010-10 3DR-58R
10010TB Thrust bearing for SB / BB Chevy --- --- ---
10310 SB Chevy w/ BB Chevy lower gear --- --- 3DR-58R
10030 BB Chevy 10030-5 10030-10 3DR-66R
19055 SBC 84-02, with roller cam 3DR-58R
19335 SBC LS1 97-06 3DR-60R
19435 SBC LS2 03-07 3DR-60R
19535 SBC LS3 80-10, 6.0L-6.2L, 1-Bolt 3DR-60R
19665 SBC raised cam w/BBC crank snout 3DR-60R
19775 SBC 06-10, LS7 7.0L 3DR-60R
29635 SBC LS3 06-07, 6.0L/6.2L, 3-Bolt 3DR-60R
29735 BBC 96-00, Gen VI 3DR-66R
FORD
10070 Ford 302, 351W 62-84 10070-5 --- 3DR-66R
10070TB Thrust bearing for 10070 --- --- ---
10150 SB Ford 84-Up 10150-5 10150-10 3DR-58R
59125 Ford 70-82, 351C / 351M / 400 3DR-64R
79805 Ford 64-78, 330-428 3DR-64R
79035 BB Ford 72-87, 429-460 3DR-66R
CHRYSLER
10040 SB Chrysler, No Torrington bearing --- --- 3DR-68R
10060 BB Chrysler, No Torrington bearing --- --- 3DR-66R
09505 Chrysler 5.7-6.1L, 03-10 HEMI, 05-08 R/T --- --- 3DR-72R
49405 BB Chrysler 58-80, 1-Bolt 3DR-66R
PONTIAC/OLDSMOBILE
10120 Pontiac V8 --- --- 3DR-60R
10320 Oldsmobile Rocket block --- --- 3DR-60R

ADJUSTABLE CAM TIMING SET

• Large .250” diameter seamless double roller chain
• 2-piece adjustable billet steel cam sprocket
• Press fit roller thrust bearing
• Advance or retard the cam 2°, 4°, or 6°
• Heat treated crank sprocket with black oxide coating
PART NO. APPLICATION PART NO. APPLICATION
CHEVY FORD
10078 SB Chevy 55-96 50278 SB Ford Early 63-71
10678 SB Chevy Rocket block w/ SBC crank snout 51578 SB Ford Late 72-01
15000-5 SB Chevy 55-96, w/ Thrust bearing, -.005 CD 70378 BB Ford 72-87
15678 BB Chevy, w/BBC crank snout CHRYSLER
20178 BB Chevy 65-97 05078 HEMI 5.7-6.1L

72
