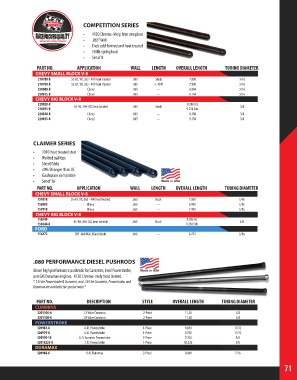

Page 71 - 2018 Master Catalog

COMPETITION SERIES
• 4130 Chrome-Moly, True one piece
• .065” Wall
• Ends cold formed and heat treated
• 500lb spring load
• Set of 8

PART NO. APPLICATION WALL LENGTH OVERALL LENGTH TUBING DIAMETER
CHEVY SMALL BLOCK V-8
210780-8 55-87, V8, 262 - 400 heat treated .065 Stock 7.800 5/16
210790-8 55-87, V8, 262 - 400 heat treated .065 +.1000 7.900 5/16
250688-8 Chevy .065 --- 6.884 5/16
250815-8 Chevy .065 --- 8.144 5/16
CHEVY BIG BLOCK V-8
220828-8 8.280 Int.
220925-8 65-90, 396-502 heat treated .065 Stock 9.250 Exh. 3/8
220838-8 Chevy .065 --- 8.380 3/8
220935-8 Chevy .065 --- 9.350 3/8

CLAIMER SERIES
• 1010 Heat treated steel
• Welded ball tips
• Street/Strip
• 30% Stronger than OE
• Guideplate compatible
• Set of 16
PART NO. APPLICATION WALL LENGTH OVERALL LENGTH TUBING DIAMETER
CHEVY SMALL BLOCK V-8
157818 55-87, V8, 262 - 400 heat treated .060 Stock 7.800 5/16
156905 Chevy .060 --- 6.900 5/16
157918 Chevy .060 --- 7.900 5/16
CHEVY BIG BLOCK V-8
158249 8.280 Int.
159244-8 65-90, 396-502 heat treated .060 Stock 9.250 Exh. 3/8
FORD
156272 SBF .060 Wall, Black Oxide .060 --- 6.272 5/16

.080 PERFORMANCE DIESEL PUSHRODS

Diesel high performance pushrods for Cummins, Ford Powerstroke,
and GM Duramax engines. 4130 Chrome-moly heat treated.
*.135 for Powerstroke & Cummins, and .165 for Cummins, Powerstroke, and
Duramax are available for special order.*

PART NO. DESCRIPTION STYLE OVERALL LENGTH TUBING DIAMETER
CUMMINS
3201105-6 12 Valve Cummins 2-Piece 11.05 3/8
3201160-6 24 Valve Cummins 2-Piece 11.60 3/8
POWERSTROKE
320983-8 6.0L Powerstroke 1-Piece 9.830 11/32
320979-8 6.4L Powerstroke 1-Piece 9.790 11/32
320970-16 6.7L Scorpion Powerstroke 2-Piece 9.700 3/8
32010225-8 7.3L Powerstroke 1-Piece 10.225 3/8
DURAMAX
320968-8 6.6L Duramax 2-Piece 9.680 7/16

71
