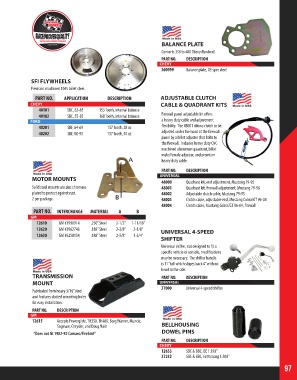

Page 97 - 2018 Master Catalog

BALANCE PLATE
Converts 350 to 400 Chevy flywheel.
PART NO. DESCRIPTION
CHEVY
300999 Balance plate, OE spec steel

SFI FLYWHEELS
Precision machined 1045 billet steel.
PART NO. APPLICATION DESCRIPTION ADJUSTABLE CLUTCH
CHEVY CABLE & QUADRANT KITS
40101 SBC, 63-85 153 Tooth, Internal balance
40102 SBC, 55-85 168 Tooth, Internal balance Firewall panel adjustable kit offers
FORD a heavy duty cable and adjustment
40201 SBF, 64-69 157 Tooth, 28 oz flexibility. The 48001 allows clutch to be
40202 SBF, 80-95 157 Tooth, 50 oz adjusted under the hood at the firewall
panel by a billet adjuster that bolts to
the firewall. Includes heavy duty CNC
machined aluminum quadrant, billet
male/female adjuster, and premium
heavy duty cable.
PART NO. DESCRIPTION
MOTOR MOUNTS UNIVERSAL
48000 Quadrant kit, end adjustment, Mustang 79-95
Solid steel mounts are zinc chromate 48001 Quadrant kit, firewall adjustment, Mustang 79-96
plated to protect against rust. 48002 Adjustable clutch cable, Mustang 79-95
2 per package. 48003 Clutch cable, adjustable end, Mustang Cobra/GT 96-04
48004 Clutch cable, Mustang Cobra/GT 96-04, firewall
PART NO. INTERCHANGE MATERIAL A B
GM
12610 GM #3990914 .250” Steel 2-1/2” 1-11/16”
12620 GM #3962748 .188” Steel 2-3/8” 2-1/8” UNIVERSAL 4-SPEED
12630 GM #6258154 .188” Steel 2-5/8” 1-3/4”
SHIFTER
Universal shifter, not designed to fit a
specific vehicle or console, modifications
may be necessary. The shifter handle
is 11” tall which slopes back 4” with no
bend to the side.
TRANSMISSION PART NO. DESCRIPTION
MOUNT UNIVERSAL
Fabricated from heavy 3/16” steel 37000 Universal 4-speed shifter
and features slotted mountnig holes
for easy installation.
PART NO. DESCRIPTION
GM
12615 Accepts Powerglide, TH350, TH400, Borg Warner, Muncie,
Saginaw, Chrysler, and Doug Nash BELLHOUSING
*Does not fit 1982-92 Camaro/Firebird* DOWEL PINS
PART NO. DESCRIPTION
CHEVY
12653 SBC & BBC, OE 1.193”
37232 SBC & BBC, Extra Long 1.500”

97
