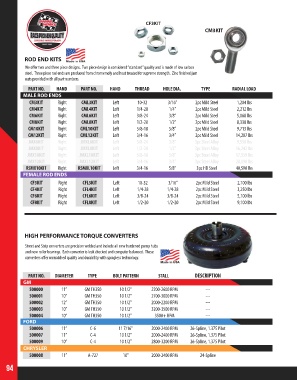

Page 94 - 2018 Master Catalog

CF3KIT
CM3KIT

ROD END KITS
We offer two and three piece designs. Two piece design is considered “standard” quality and is made of low carbon
steel. Three piece rod ends are produced from chromemoly and heat treated for supreme strength. Zinc finished jam
nuts provided with all part numbers.
PART NO. HAND PART NO. HAND THREAD HOLE DIA. TYPE RADIAL LOAD
MALE ROD ENDS
CM3KIT Right CML3KIT Left 10-32 3/16” 2pc Mild Steel 1,204 lbs
CM4KIT Right CML4KIT Left 1/4-28 1/4” 2pc Mild Steel 2,212 lbs
CM6KIT Right CML6KIT Left 3/8-24 3/8” 2pc Mild Steel 5,068 lbs
CM8KIT Right CML8KIT Left 1/2-20 1/2” 2pc Mild Steel 8,338 lbs
CM10KIT Right CML10KIT Left 5/8-18 5/8” 2pc Mild Steel 9,713 lbs
CM12KIT Right CML12KIT Left 3/4-16 3/4” 2pc Mild Steel 14,207 lbs
JMX6KIT Right JMXL6KIT Left 3/8-24 3/8” 3pc Steel Alloy 9,550 lbs
JMX8KIT Right JMXL8KIT Left 1/2-20 1/2” 3pc Steel Alloy 16,242 lbs
JMX10KIT Right JMXL10KIT Left 5/8-18 5/8” 3pc Steel Alloy 17,959 lbs
JMX12KIT Right JMXL12KIT Left 3/4-16 3/4” 3pc Steel Alloy 28,090 lbs
RSMX10KIT Right RSMXL10KIT Left 3/4-16 5/8” 3pc HD Steel 40,590 lbs
FEMALE ROD ENDS
CF3KIT Right CFL3KIT Left 10-32 3/16” 2pc Mild Steel 2,100 lbs
CF4KIT Right CFL4KIT Left 1/4-28 1/4-28 2pc Mild Steel 3,250 lbs
CF6KIT Right CFL6KIT Left 3/8-24 3/8-24 2pc Mild Steel 5,100 lbs
CF8KIT Right CFL8KIT Left 1/2-20 1/2-20 2pc Mild Steel 9,100 lbs

HIGH PERFORMANCE TORQUE CONVERTERS
Street and Strip converters are precision welded and include all new hardened pump hubs
and new roller bearings. Each converter is leak checked and computer balanced. These
converters offer unmatched quality and durability with spragless technology.

PART NO. DIAMETER TYPE BOLT PATTERN STALL DESCRIPTION
GM
500000 11” GM TH350 10 1/2” 2200-2600 RPM ---
500001 10” GM TH350 10 1/2” 2700-3000 RPM ---
500002 12” GM TH350 10 1/2” 2000-2200 RPM ---
500003 10” GM TH350 10 1/2” 3200-3500 RPM ---
500004 10” GM TH350 10 1/2” 3500+ RPM ---
FORD
500006 11” C-6 11 7/16” 2000-2400 RPM 26-Spline, 1.375 Pilot
500007 11” C-4 10 1/2” 2000-2400 RPM 26-Spline, 1.375 Pilot
500009 10” C-4 10 1/2” 2800-3200 RPM 26-Spline, 1.375 Pilot
CHRYSLER
500008 11” A-727 10” 2000-2400 RPM 24-Spline

94
