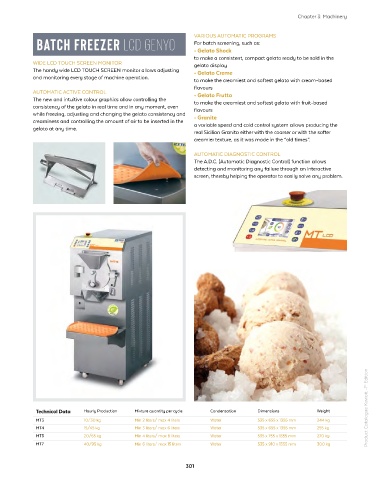

Page 301 - Products Catalogue First Edition 2021

icecream WIDE LCD TOUCH SCREEN MONITOR VARIOUS AUTOMATIC PROGRAMS Chapter 3: Machinery

batch freezer lcd genyo
For batch screening, such as:
• Gelato Shock
to make a consistent, compact gelato ready to be sold in the
gelato display
The handy wide LCD TOUCH SCREEN monitor allows adjusting
and monitoring every stage of machine operation.
to make the creamiest and softest gelato with cream-based
flavours
AUTOMATIC ACTIVE CONTROL • Gelato Creme
• Gelato Frutta
The new and intuitive colour graphics allow controlling the to make the creamiest and softest gelato with fruit-based
consistency of the gelato in real time and in any moment, even flavours
while freezing, adjusting and changing the gelato consistency and • Granite
creaminess and controlling the amount of air to be inserted in the a variable speed and cold control system allows producing the
gelato at any time.
real Sicilian Granita either with the coarser or with the softer
creamier texture, as it was made in the “old times”.

AUTOMATIC DIAGNOSTIC CONTROL
The A.D.C. (Automatic Diagnostic Control) function allows
detecting and monitoring any failure through an interactive
screen, thereby helping the operator to easily solve any problem.

Product Catalogue Kuwait -1 st Edition

Technical Data Hourly Production Mixture quantity per cycle Condensation Dimensions Weight
MT3 10/30 kg Min 2 liters/ max 4 liters Water 535 x 655 x 1355 mm 244 kg
MT4 15/45 kg Min 3 liters/ max 6 liters Water 535 x 655 x 1355 mm 255 kg
MT5 20/65 kg Min 4 liters/ max 8 liters Water 535 x 755 x 1355 mm 270 kg
MT7 40/95 kg Min 6 liters/ max 15 liters Water 535 x 910 x 1355 mm 300 kg
