Page 306 - Products Catalogue First Edition 2021
P. 306
Chapter 3: Machinery
MULTIFUNCTION MACHINES 3 IN 1 TP3 / TP4 / TP5 / TP7
The pasteurizers Easy Icetech are realized with technology that enables the operator to produce all kind of gelato
mixes, in a easy way and with an high level of hygienic safety. “3 in 1” in the four TP3, TP4, TP5 and TP7 versions is a complete laboratory intended to mix, pasteurize, cook and
whip the ice-cream mixture in one single machine.
The upper pasteurizing and mixing tank and the lower cooling and whipping cylinder can work autonomously and guarantee a
continuous cycle production without dead times.

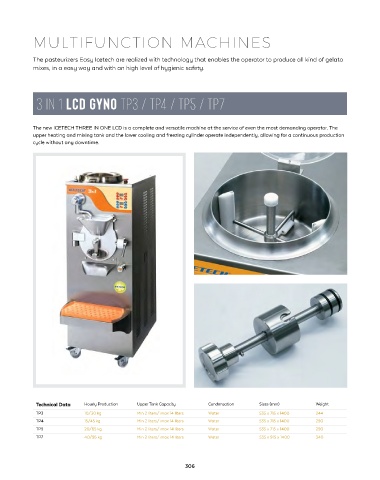

3 IN 1 LCD GYNO TP3 / TP4 / TP5 / TP7
The new ICETECH THREE IN ONE LCD is a complete and versatile machine at the service of even the most demanding operator. The
upper heating and mixing tank and the lower cooling and freezing cylinder operate independently, allowing for a continuous production
cycle without any downtime.
Technical Data Hourly Production Upper Tank Capacity Condensation Sizes (mm) Weight
TP3 10/30 kg Min 2 liters/ max 14 liters Water 535 x 715 x 1400 260
TP4 15/45 kg Min 2 liters/ max 14 liters Water 535 x 715 x 1400 290
TP5 20/65 kg Min 2 liters/ max 14 liters Water 535 x 715 x 1400 290
TP7 40/95 kg Min 2 liters/ max 14 liters Water 535 x 915 x 1400 340
Product Catalogue Kuwait -1 st Edition
Technical Data Hourly Production Upper Tank Capacity Condensation Sizes (mm) Weight
TP3 10/30 kg Min 2 liters/ max 14 liters Water 535 x 715 x 1400 244
TP4 15/45 kg Min 2 liters/ max 14 liters Water 535 x 715 x 1400 290
TP5 20/65 kg Min 2 liters/ max 14 liters Water 535 x 715 x 1400 290
TP7 40/95 kg Min 2 liters/ max 14 liters Water 535 x 915 x 1400 340
