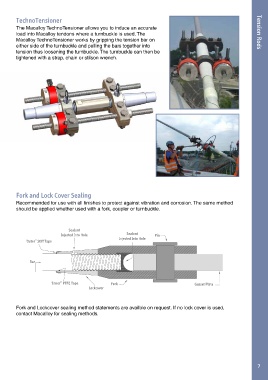

TechnoTensioner
The Macalloy TechnoTensioner allows you to induce an accurate
load into Macalloy tendons where a turnbuckle is used. The Tension Rods
Macalloy TechnoTensioner works by gripping the tension bar on
either side of the turnbuckle and pulling the bars together into
tension thus loosening the turnbuckle. The turnbuckle can then be
tightened with a strap, chain or stilson wrench.
Fork and Lock Cover Sealing
Recommended for use with all finishes to protect against vibration and corrosion. The same method
should be applied whether used with a fork, coupler or turnbuckle.
Sealant
Injected Into Hole Sealant Pin
Injected Into Hole
‘Outer” Stiff Tape
Bar
‘Inner” PTFE Tape Fork Gusset Plate
Lockcover
Fork and Lockcover sealing method statements are availble on request. If no lock cover is used,
contact Macalloy for sealing methods.
