Page 11 - A4 Post tensioning bar 1030

Macalloy Post Tensioning System

Detailing A more detailed explanation of the
There are many permutations Macalloy Post Tensioning System
possible, to achieve satisfactory is available in the Macalloy 1030
construction details and advice is European Technical Approval,
readily available from the Technical document ETA-07/0046.
Department.

Figure 4 shows typical tendon
assemblies.

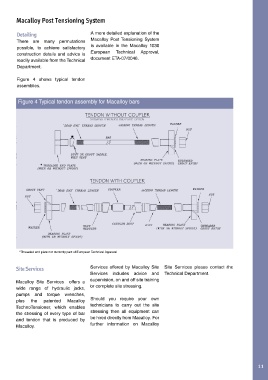

Figure 4 Typical tendon assembly for Macalloy bars

*Threaded end plate not currently part of European Technical Approval

Site Services Services offered by Macalloy Site Site Services please contact the
Services includes advice and Technical Department.
Macalloy Site Services offers a supervision, on and off site training
wide range of hydraulic jacks, or complete site stressing.
pumps and torque wrenches,
plus the patented Macalloy Should you require your own
TechnoTensioner, which enables technicians to carry out the site
the stressing of every type of bar stressing then all equipment can
and tendon that is produced by be hired directly from Macalloy. For
Macalloy. further information on Macalloy

11
