KNX ADVANCED COURSE

2.3 Project Design
The following examples should only be seen as a planning aid.

2.3.1 Group Addresses

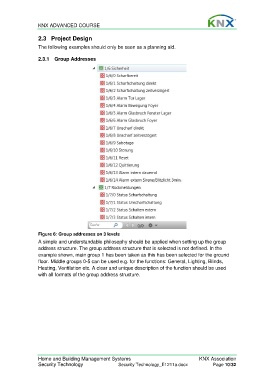

Figure 6: Group addresses on 3 levels
A simple and understandable philosophy should be applied when setting up the group
address structure. The group address structure that is selected is not defined. In the
example shown, main group 1 has been taken as this has been selected for the ground
floor. Middle groups 0-5 can be used e.g. for the functions: General, Lighting, Blinds,
Heating, Ventilation etc. A clear and unique description of the function should be used
with all formats of the group address structure.
