KNX ADVANCED COURSE

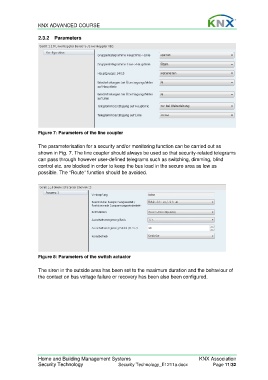

2.3.2 Parameters
Figure 7: Parameters of the line coupler
The parameterisation for a security and/or monitoring function can be carried out as
shown in Fig. 7. The line coupler should always be used so that security-related telegrams
can pass through however user-defined telegrams such as switching, dimming, blind
control etc. are blocked in order to keep the bus load in the secure area as low as
possible. The “Route” function should be avoided.
Figure 8: Parameters of the switch actuator
The siren in the outside area has been set to the maximum duration and the behaviour of
the contact on bus voltage failure or recovery has been also been configured.
