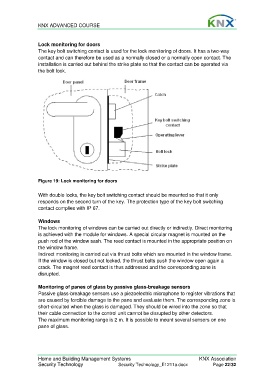

KNX ADVANCED COURSE

Lock monitoring for doors
The key bolt switching contact is used for the lock monitoring of doors. It has a two-way
contact and can therefore be used as a normally closed or a normally open contact. The
installation is carried out behind the strike plate so that the contact can be operated via
the bolt lock.

Figure 19: Lock monitoring for doors

With double locks, the key bolt switching contact should be mounted so that it only
responds on the second turn of the key. The protection type of the key bolt switching
contact complies with IP 67.

Windows
The lock monitoring of windows can be carried out directly or indirectly. Direct monitoring
is achieved with the module for windows. A special circular magnet is mounted on the
push rod of the window sash. The reed contact is mounted in the appropriate position on
the window frame.
Indirect monitoring is carried out via thrust bolts which are mounted in the window frame.
If the window is closed but not locked, the thrust bolts push the window open again a
crack. The magnet reed contact is thus addressed and the corresponding zone is
disrupted.

Monitoring of panes of glass by passive glass-breakage sensors
Passive glass-breakage sensors use a piezoelectric microphone to register vibrations that
are caused by forcible damage to the pane and evaluate them. The corresponding zone is
short-circuited when the glass is damaged. They should be wired into the zone so that
their cable connection to the control unit cannot be disrupted by other detectors.
The maximum monitoring range is 2 m. It is possible to mount several sensors on one
pane of glass.
