KNX ADVANCED COURSE

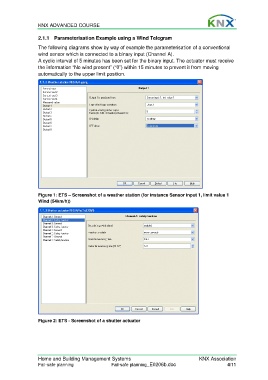

2.1.1 Parameterisation Example using a Wind Telegram
The following diagrams show by way of example the parameterisation of a conventional
wind sensor which is connected to a binary input (Channel A).
A cyclic interval of 5 minutes has been set for the binary input. The actuator must receive
the information “No wind present” (“0”) within 15 minutes to prevent it from moving
automatically to the upper limit position.

Figure 1: ETS – Screenshot of a weather station (for instance Sensor input 1, limit value 1
Wind (54km/h))

Figure 2: ETS - Screenshot of a shutter actuator
