ALU-POWER ALU-POWER

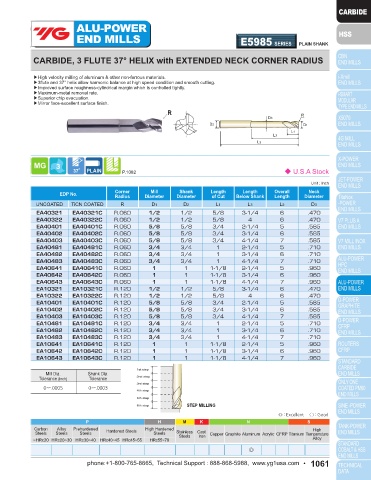

END MILLS E5977 SERIES PLAIN SHANK END MILLS E5985 SERIES PLAIN SHANK

CARBIDE, 3 FLUTE 37° HELIX with EXTENDED NECK CARBIDE, 3 FLUTE 37° HELIX with EXTENDED NECK CORNER RADIUS

▶High velocity milling of aluminum & other non-ferrous materials. ▶High velocity milling of aluminum & other non-ferrous materials.
▶3flute and 37° helix allow harmonic balance at high speed condition and smooth cutting. ▶3flute and 37° helix allow harmonic balance at high speed condition and smooth cutting.
▶Improved surface roughness-cylindrical margin which is controlled tightly. ▶Improved surface roughness-cylindrical margin which is controlled tightly.
▶Maximum-metal removal rate. ▶Maximum-metal removal rate.
▶Superior chip evacuation. ▶Superior chip evacuation.
▶Mirror face-excellent surface finish. ▶Mirror face-excellent surface finish.
R
D3 ↙ D3 R
D2 D1 D2 D1
L1 L1
L3 L3
L2 L2

P.1082 ◆ U.S.A Stock P.1082 ◆ U.S.A Stock
Unit : Inch Unit : Inch
Shank
Mill
Neck
Length
Length
Neck
Shank
Mill
EDP No. Diameter Diameter Length Below Shank Overall Diameter EDP No. Corner Diameter Diameter Length Below Shank Overall Diameter
Length
of Cut
of Cut
Radius
Length
UNCOATED TiCN COATED D1 D2 L1 L3 L2 D3 UNCOATED TiCN COATED R D1 D2 L1 L3 L2 D3
40573 40573TC 1/4 1/4 3/8 2-1/4 4 .220 EA40321 EA40321C R.060 1/2 1/2 5/8 3-1/4 6 .470
40584 40584TC 3/8 3/8 1/2 2-1/4 4 .345 EA40322 EA40322C R.060 1/2 1/2 5/8 4 6 .470
40593 40593TC 1/2 1/2 5/8 2-1/4 5 .470 EA40401 EA40401C R.060 5/8 5/8 3/4 2-1/4 5 .585
40901 40901TC 1/2 1/2 5/8 3-1/4 6 .470 EA40402 EA40402C R.060 5/8 5/8 3/4 3-1/4 6 .585
40902 40902TC 1/2 1/2 5/8 4 6 .470 EA40403 EA40403C R.060 5/8 5/8 3/4 4-1/4 7 .585
40595 40595TC 5/8 5/8 3/4 2-1/4 5 .585 EA40481 EA40481C R.060 3/4 3/4 1 2-1/4 5 .710
40903 40903TC 5/8 5/8 3/4 3-1/4 6 .585 EA40482 EA40482C R.060 3/4 3/4 1 3-1/4 6 .710
40904 40904TC 5/8 5/8 3/4 4-1/4 7 .585 EA40483 EA40483C R.060 3/4 3/4 1 4-1/4 7 .710
40598 40598TC 3/4 3/4 1 2-1/4 5 .710 EA40641 EA40641C R.060 1 1 1-1/8 2-1/4 5 .960
40905 40905TC 3/4 3/4 1 3-1/4 6 .710 EA40642 EA40642C R.060 1 1 1-1/8 3-1/4 6 .960
40906 40906TC 3/4 3/4 1 4-1/4 7 .710 EA40643 EA40643C R.060 1 1 1-1/8 4-1/4 7 .960
40600 40600TC 1 1 1-1/8 2-1/4 5 .960 EA10321 EA10321C R.120 1/2 1/2 5/8 3-1/4 6 .470
40907 40907TC 1 1 1-1/8 3-1/4 6 .960 EA10322 EA10322C R.120 1/2 1/2 5/8 4 6 .470
40908 40908TC 1 1 1-1/8 4-1/4 7 .960 EA10401 EA10401C R.120 5/8 5/8 3/4 2-1/4 5 .585
EA10402 EA10402C R.120 5/8 5/8 3/4 3-1/4 6 .585
Mill Dia. Shank Dia. EA10403 EA10403C R.120 5/8 5/8 3/4 4-1/4 7 .585
Tolerance (inch) Tolerance EA10481 EA10481C R.120 3/4 3/4 1 2-1/4 5 .710
EA10482 EA10482C R.120 3/4 3/4 1 3-1/4 6 .710
0~-.0005 0~-.0003
EA10483 EA10483C R.120 3/4 3/4 1 4-1/4 7 .710
EA10641 EA10641C R.120 1 1 1-1/8 2-1/4 5 .960
EA10642 EA10642C R.120 1 1 1-1/8 3-1/4 6 .960
EA10643 EA10643C R.120 1 1 1-1/8 4-1/4 7 .960
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
STEP MILLING
0~-.0005 0~-.0003
STEP MILLING

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎
1060 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1061
